地质封存过程中CO2注入对地层影响研究进展

doi:10.13809/j.cnki.cn32-1825/te.2025.04.012

油气藏评价与开发 ›› 2025, Vol. 15 ›› Issue (4): 632-640.doi: 10.13809/j.cnki.cn32-1825/te.2025.04.012

地质封存过程中CO₂注入对地层影响研究进展

王展鹏¹^,²(), 刘双星¹, 刘琦¹(), 杨术刚¹, 张敏², 鲜成钢², 翁艺斌¹

1.中国石油安全环保技术研究院有限公司，北京 102206
2.中国石油大学（北京）非常规油气科学技术研究院油气资源与工程国家重点实验室，北京 102249

收稿日期:2024-06-25 发布日期:2025-07-19 出版日期:2025-08-26
通讯作者: 刘琦（1984—），男，副教授，博士生导师，校青年拔尖人才，主要从事低碳能源工程与油气田化学工程研究工作。地址：北京市昌平区府学路18号中国石油大学（北京），邮政编码：102249。E-mail：liuqi@cup.edu.cn
作者简介:王展鹏（2001—），男，在读硕士研究生，主要从事CO₂地质封存研究。地址：北京市昌平区府学路18号中国石油大学（北京），邮政编码：102249。E-mail：2022216610@student.cup.edu.cn
基金资助:
中国石油科技专项“咸水层二氧化碳封存协同烟气处置方法研究”(2023ZZ1301);内蒙古自治区科技重大专项“化工产业CO2减排及其高值化利用的新材料、新机制、新途径”(2021ZD0020);中国石油大学（北京）校基金项目“CCUS地质封存中固井水泥智能响应封窜体系协同调控机制研究”(ZX20200133);国家自然科学基金项目“CCUS地质封存中CO2-咸水-地层岩-油井水泥相互作用机理的研究”(51604288)

Research progress on effects of CO₂ injection on formations during geological storage

WANG Zhanpeng¹^,²(), LIU Shuangxing¹, LIU Qi¹(), YANG Shugang¹, ZHANG Min², XIAN Chenggang², WENG Yibin¹

1.CNPC Research Institute of Safety & Environment Technology, Beijing 102206, China
2.State Key Laboratory of Petroleum Resources and Engineering, Unconventional Petroleum Research Institute, China University of Petroleum (Beijing), Beijing 102249, China

Received:2024-06-25 Online:2025-07-19 Published:2025-08-26

摘要/Abstract

摘要：

CO₂地质封存作为碳捕集、利用与封存（CCUS）技术中的重要一环，决定了CCUS技术的发展潜力和发展方向，是实现“双碳”目标的有效手段，明确CO₂注入产生的一系列地层响应对于安全高效注入具有重要意义。压力提升是限制封存容量和封存安全的主要因素，流体溶解运移沉淀是影响地层稳定性和封存效率的本质特征，储层可注性及盖层安全性是决定地质封存项目成败的关键。系统讨论了CO₂注入引起的压力聚集、压力传导、CO₂-水-岩相互作用、矿物溶解沉淀及岩石孔隙结构特征等方面的地层响应特征，总结了润湿性、孔隙度、渗透率、流体性质、岩石强度、盖层完整性、地表形变及断层活化对储层可注性和盖层安全性的影响，指出目前研究存在的压力变化规律难预测、反应机理不明晰、注入效率不高效、监测评估尚不完善等主要问题。未来需要深化对封存机理的理解，改善地层响应的监测和评估方法，加强环境风险评估，进一步推动CO₂地质封存技术的安全、高效应用，为应对全球气候变化问题提供有力支持。

关键词: 注入工艺, 压力变化, CO₂-水-岩作用, 孔渗特征, 可注性

Abstract:

As a critical component of Carbon Capture, Utilization and Storage (CCUS) technology, CO₂ geological storage plays a decisive role in the development potential and direction of CCUS technology, and serves as an effective means to achieve “dual carbon” goals. Clarifying the series of formation responses caused by CO₂ injection is essential for safe and efficient injection. Pressure buildup is a primary factor constraining the storage capacity and safety. Fluid dissolution, migration, and precipitation are the fundamental features affecting formation stability and storage efficiency. In addition, reservoir injectivity and caprock integrity are key determinants for the success of geological storage projects. The formation response characteristics caused by CO₂ injection were systematically discussed, including pressure buildup, pressure propagation, CO₂-water-rock interactions, mineral dissolution and precipitation, and rock pore structure characteristics. The influences of wettability, porosity, permeability, fluid properties, rock strength, caprock integrity, surface deformation, and fault activation on reservoir injectivity and caprock safety were summarized. Major current issues in research were identified, including the unpredictability of pressure change patterns, unclear reaction mechanisms, low injection efficiency, and incomplete monitoring and evaluation frameworks. Future work should deepen the understanding of storage mechanisms, improve monitoring and assessment methods of formation response, strengthen environmental risk evaluation, and further promote the safe and efficient application of CO₂ geological storage technology, thereby providing strong support for addressing global climate change.

Key words: injection process, pressure change, CO₂-water-rock interaction, porosity and permeability characteristics, injectivity

中图分类号:

TE38

王展鹏,刘双星,刘琦, 等. 地质封存过程中CO₂注入对地层影响研究进展[J]. 油气藏评价与开发, 2025, 15(4): 632-640.

WANG Zhanpeng,LIU Shuangxing,LIU Qi, et al. Research progress on effects of CO₂ injection on formations during geological storage[J]. Petroleum Reservoir Evaluation and Development, 2025, 15(4): 632-640.

图/表 6

表1

不同注入技术对比"

注入方式	操作模式	影响因素	优点	缺点	应用	发展趋势
连续注入	持续不间断注入	注入量、注入速率	操作简单、稳定性好、驱油效率高	地层压力增长快、需严格控制注入参数	封存容量大、良好封闭性油藏	更为精细的注入参数控制
间歇注入	分批注入	注入周期、停止时间	缓解地层压力、减少破裂风险、提高原油流动性	操作复杂、精准控制难度大、驱油效率可能略低	地质条件复杂、存在潜在破裂风险油藏	注重优化注入周期和停止时间
压力管理注入	监测、动态调整注入	地层压力监测准确性、压力调节措施	降低泄漏风险、提高封存效率	操作成本高、需高精度实时监测设备	地层压力变化敏感、存在较高安全风险油藏	实时监测储层压力和流体动态
多点注入	多个注入点，同时或分阶段注入	注入点布局、各注入点注入参数	减少压力梯度、便于均匀分布	增加设备和操作成本、参数优化复杂	封存容量大、强非均质性油藏	优化注入井的位置和数量
定向注入	定向注入至特定区域或层位	定向钻井精度、目标区域油藏特性	提高封存效率、减少CO₂无效扩散和泄漏风险	定向钻井技术成本较高、设备要求高	具有特定裂隙地层、需要精确控制注入位置的油藏	提高技术的适应性和可靠性
CO₂吞吐	周期性注入采出	吞吐周期、焖井时间、地层特性	经济环保、工艺简单、增油效果明显、适用性广	效果不确定性强、潜在风险大	井间连通性差、小断块、低渗透、低压力、开采难度大的油藏	单井向井组转变，单一吞吐向复合吞吐转变
水气交替注入	CO₂和水按比例交替注入	注入比例、交替周期、注入顺序	扩大波及体积、降低流度比、保持油层压力	操作相对复杂、控制难度大、风险与不确定性大	地层非均质性较强、需要提高波及效率的油藏	开发监测智能系统，研发环境友好型注入剂
水力压裂辅助	预先或同步进行水力压裂	压裂液性质、压裂工艺参数	增强CO₂注入效率、降低注入难度	对油藏存在潜在伤害、需要额外设备和操作成本	渗透率低、储层条件好的油藏	工艺参数优化与动态匹配

表1

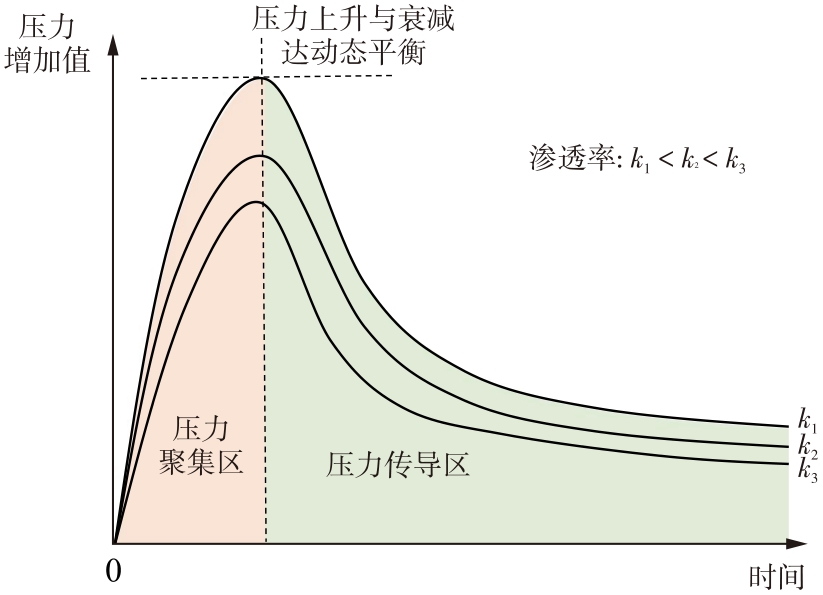

图1

表2

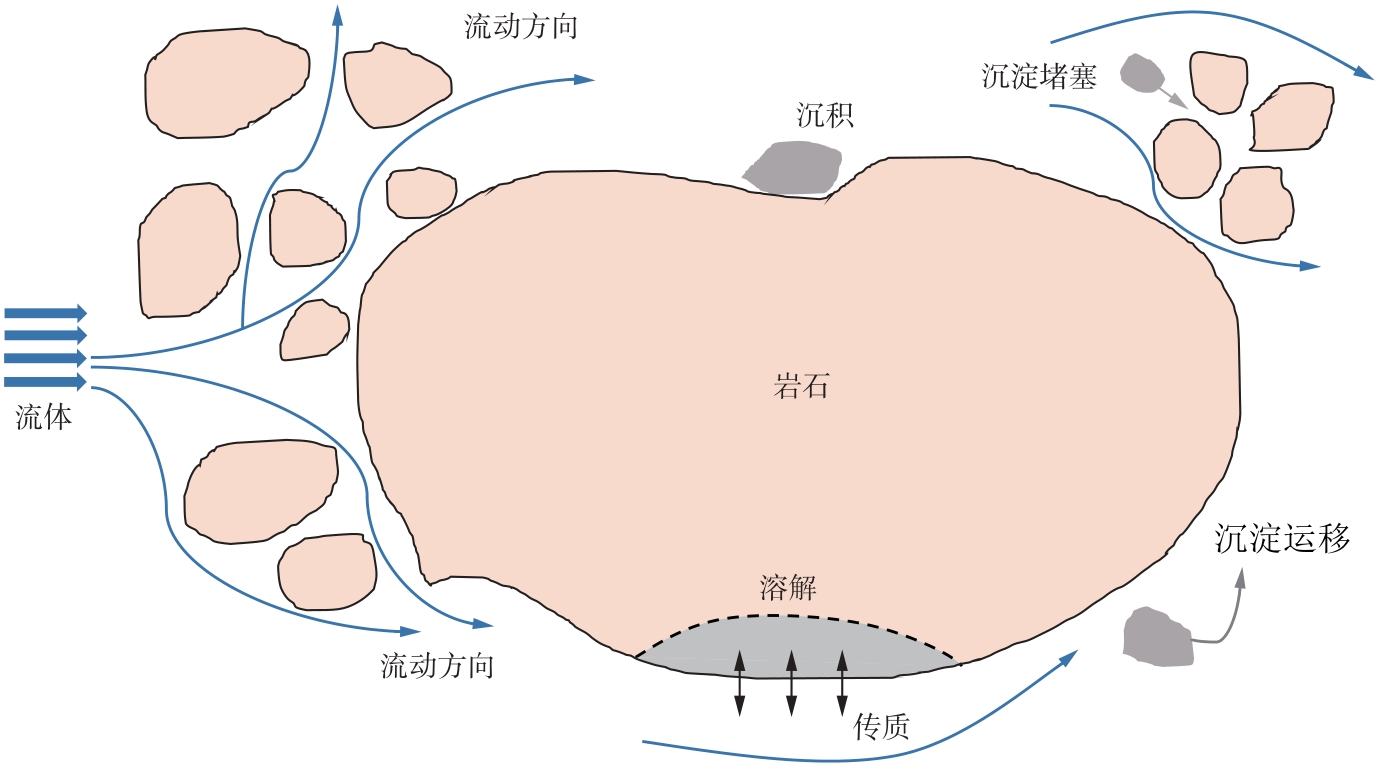

图2

图3

图4

参考文献 45

[1]	张贤, 杨晓亮, 鲁玺, 等. 中国二氧化碳捕集利用与封存(CCUS)年度报告(2023)[R]. 北京: 中国21世纪议程管理中心, 全球碳捕集与封存研究院, 清华大学, 2023.
	ZHANG Xian, YANG Xiaoliang, LU Xi, et al. China Carbon Dioxide Capture, Utilization and Storage (CCUS) Annual Report (2023)[R]. Beijing: China Agenda 21 Management Center, Global Carbon Capture and Storage Research Institute, Tsinghua University, 2023.
[2]	REZK M G, IBRAHIM A F, ADEBAYO A R. Uncertainty quantification for CO₂ storage during intermittent CO₂-EOR in oil reservoirs[J]. International Journal of Coal Geology, 2023, 266: 104177.
[3]	周银邦, 王锐, 何应付, 等. 咸水层CO₂地质封存典型案例分析及对比[J]. 油气地质与采收率, 2023, 30(2): 162-167.
	ZHOU Yinbang, WANG Rui, HE Yingfu, et al. Analysis and comparison of typical cases of CO₂ geological storage in saline aquifer[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(2): 162-167.
[4]	柯怡兵, 李义连, 张炜, 等. 岩盐沉淀对咸水层二氧化碳地质封存注入过程的影响: 以江汉盆地为例[J]. 地质科技情报, 2012, 31(3): 109-115.
	KE Yibing, LI Yilian, ZHANG Wei, et al. Impact of halite precipitation on CO₂ injection into saline aquifers: A case study of Jianghan basin[J]. Geological Science and Technology Information, 2012, 31(3): 109-115.
[5]	胡叶军, 王蔚, 任杰, 等. 深部咸水层CO₂地质封存对地层压力环境的影响[J]. 河海大学学报(自然科学版), 2016, 44(6): 512-518.
	HU Yejun, WANG Wei, REN Jie, et al. Effect of CO₂ geological sequestration in deep saline aquifer on formation pressure environment[J]. Journal of Hohai University (Natural Sciences), 2016, 44(6): 512-518.
[6]	王永胜. CO₂咸水层封存砂岩储层孔隙尺度变化规律及可注性研究: 基于神华CCS示范工程[D]. 武汉: 中国地质大学, 2021.
	WANG Yongsheng. Study on the variation of pore scale and injectability of CO₂ saltwater sequestered sandstone reservoir[D]. Wuhan: China University of Geosciences, 2021.
[7]	KIM K Y, HAN W S, OH J, et al. Characteristics of salt-precipitation and the associated pressure build-up during CO₂ storage in saline aquifers[J]. Transport in Porous Media, 2012, 92(2): 397-418.
[8]	汤翔. 致密油藏衰竭开采压力传导规律与吞吐开发动态研究[D]. 北京: 中国石油大学(北京), 2022.
	TANG Xiang. Study on the pressure conduction law of depletion and dynamic characteristics of huff and puff in tight oil reservoir[D]. Beijing: China University of Petroleum (Beijing), 2022.
[9]	BERGMO P E S, GRIMSTAD A A, LINDEBERG E. Simultaneous CO₂ injection and water production to optimise aquifer storage capacity[J]. International Journal of Greenhouse Gas Control, 2011, 5(3): 555-564.
[10]	王千, 申建, 赵岳, 等. 煤系致密砂岩储层注CO₂启动压力梯度动态规律[J]. 煤炭学报, 2023, 48(8): 3172-3181.
	WANG Qian, SHEN Jian, ZHAO Yue, et al. Dynamic threshold pressure gradient characteristics of CO₂ injection in coal-measure tight sandstone reservoirs[J]. Journal of China Coal Society, 2023, 48(8): 3172-3181.
[11]	赵宁宁. 二氧化碳地质储存中储层孔渗及矿物特征对其运移演化的影响[D]. 长春: 吉林大学, 2018.
	ZHAO Ningning. Study on the influence of porosity and permeability and mineral characteristics on CO₂ geological storage[D]. Changchun: Jilin University, 2018.
[12]	高阳. 鄂尔多斯盆地CCS地质封存中CO₂-咸水-地层岩反应研究[D]. 北京: 中国石油大学(北京), 2018.
	GAO Yang. Investigation of CO₂-formation brine-rock reaction of Shenhua Ordos CCS project[D]. Beijing: China University of Petroleum (Beijing), 2018.
[13]	张烈辉, 张涛, 赵玉龙, 等. 二氧化碳-水-岩作用机理及微观模拟方法研究进展[J]. 石油勘探与开发, 2024, 51(1): 199-211.
	ZHANG Liehui, ZHANG Tao, ZHAO Yulong, et al. A review of interaction mechanisms and microscopic simulation methods for CO₂-water-rock system[J]. Petroleum Exploration and Development, 2024, 51(1): 199-211.
[14]	施雷庭, 户海胜, 张玉龙, 等. 致密砂砾岩矿物与超临界CO₂和地层水相互作用[J]. 油田化学, 2019, 36(4): 640-645.
	SHI Leiting, HU Haisheng, ZHANG Yulong, et al. Interaction of tight glutenite mineral with supercritical CO₂ and formation water[J]. Oilfield Chemistry, 2019, 36(4): 640-645.
[15]	王闯. 砂岩超临界CO₂渗流特征及水岩作用影响研究[D]. 徐州: 中国矿业大学, 2019.
	WANG Chuang. Seepage characteristics of supercritical CO₂ in sandstone and influence of water-rock interaction[D]. Xuzhou: China University of Mining and Technology, 2019.
[16]	李富杰, 齐有强, 弓昊天. 矿物溶解再沉淀过程研究综述[J]. 矿物岩石地球化学通报, 2024, 43(1): 240-258.
	LI Fujie, QI Youqiang, GONG Haotian. Review on the process of mineral dissolution and reprecipitation[J]. Bulletin of Mineralogy, Petrology and Geochemistry, 2024, 43(1): 240-258.
[17]	沈臻欢, 于炳松, 韩舒筠, 等. 碳酸盐胶结物溶解—沉淀的热力学平衡在碎屑岩储层质量预测中的应用: 以渤南洼陷沙三段为例[J]. 东北石油大学学报, 2018, 42(5): 63-72, 9.
	SHEN Zhenhuan, YU Bingsong, HAN Shujun, et al. Application of thermodynamic equilibrium for dissolution-precipitation of carbonate cements in prediction of clastic reservoir quality: A case study from Es3, Bonan sag[J]. Journal of Northeast Petroleum University, 2018, 42(5): 63-72, 9.
[18]	MULLER N, QI R, MACKIE E, et al. CO₂ injection impairment due to halite precipitation[J]. Energy Procedia, 2009, 1(1): 3507-3514.
[19]	SPYCHER N, PRUESS K, ENNIS-KING J. CO₂-H₂O mixtures in the geological sequestration of CO₂. I. Assessment and calculation of mutual solubilities from 12 to 100 ℃ and up to 600 bar[J]. Geochimica et Cosmochimica Acta, 2003, 67(16): 3015-3031.
[20]	KIM M, SELL A, SINTON D. Aquifer-on-a-chip: Understanding pore-scale salt precipitation dynamics during CO₂ sequestration[J]. Lab on a Chip, 2013, 13(13): 2508-2518.
[21]	刘漪雯, 付美龙, 王长权, 等. 二氧化碳驱后微粒运移对低渗透储层的伤害及对渗流能力的影响[J]. 油田化学, 2024, 41(2): 238-244.
	LIU Yiwen, FU Meilong, WANG Changquan, et al. Damage of particle migration to low permeability reservoir after carbon dioxide flooding and its influence on seepage capacity[J]. Oilfield Chemistry, 2024, 41(2): 238-244.
[22]	杨术刚, 蔡明玉, 张坤峰, 等. CO₂-水-岩相互作用对CO₂地质封存体物性影响研究进展及展望[J]. 油气地质与采收率, 2023, 30(6): 80-91.
	YANG Shugang, CAI Mingyu, ZHANG Kunfeng, et al. Research progress and prospect of CO₂-water-rock interaction on petrophysical properties of CO₂ geological sequestration[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(6): 80-91.
[23]	LIU Q, LI J, LIANG B, et al. Microscopic flow of CO2 in complex pore structures: A recent 10-year review[J]. Sustainability, 2023, 15(17): 12959.
[24]	杨国栋. 鄂尔多斯盆地二氧化碳地质封存机理研究[D]. 武汉: 中国地质大学, 2015.
	YANG Guodong. Study on the mechanism of carbon dioxide geological storage in Ordos Basin[D]. Wuhan: China University of Geosciences, 2015.
[25]	李颖, 马寒松, 李海涛, 等. 超临界CO₂对碳酸盐岩储层的溶蚀作用研究[J]. 油气藏评价与开发, 2023, 13(3): 288-295.
	LI Ying, MA Hansong, LI Haitao, et al. Dissolution of supercritical CO₂ on carbonate reservoirs[J]. Petroleum Reservoir Evaluation and Development, 2023, 13(3): 288-295.
[26]	XIE J, ZHANG K, LI C, et al. Preliminary study on the CO₂ injectivity and storage capacity of low-permeability saline aquifers at Chenjiacun site in the Ordos Basin[J]. International Journal of Greenhouse Gas Control, 2016, 52: 215-230.
[27]	TENG Y, WANG P, XIE H, et al. Capillary trapping characteristics of CO₂ sequestration in fractured carbonate rock and sandstone using MRI[J]. Journal of Natural Gas Science and Engineering, 2022, 108: 104809.
[28]	DING N, SI L, WEI J, et al. Study on coal wettability under different gas environments based on the adsorption energy[J]. ACS Omega, 2023, 8(24): 22211-22222.
[29]	ARIF M, ABU-KHAMSIN S A, IGLAUER S. Wettability of rock/CO₂/brine and rock/oil/CO₂-enriched-brine systems: Critical parametric analysis and future outlook[J]. Advances in Colloid and Interface Science, 2019, 268: 91-113.
[30]	肖娜, 李实, 林梅钦, 等. CO₂-水-岩石相互作用对砂岩储集层润湿性影响机理[J]. 新疆石油地质, 2017, 38(4): 460-465.
	XIAO Na, LI Shi, LIN Meiqin, et al. Influence of CO₂-water-rock interactions on wettability of sandstone reservoirs[J]. Xinjiang Petroleum Geology, 2017, 38(4): 460-465.
[31]	李博文, 孙灵辉, 刘先贵, 等. CO₂-水-岩地化反应对致密砂砾岩物性、可动用性和微观孔隙结构影响[J]. 应用化工, 2023, 52(6): 1615-1618, 1625.
	LI Bowen, SUN Linghui, LIU Xiangui, et al. Effect of CO₂-brine-rock reaction on physical properties, mobility and microscopic pore structure of tight conglomerate[J]. Applied Chemical Industry, 2023, 52(6): 1615-1618.
[32]	杨术刚, 张坤峰, 刘双星, 等. 页岩渗透率测定方法及影响因素研究进展[J]. 油气地质与采收率, 2023, 30(5): 31-40.
	YANG Shugang, ZHANG Kunfeng, LIU Shuangxing, et al. Research progress on measurement methods and influencing factors of shale permeability[J]. Petroleum Geology and Recovery Efficiency, 2023, 30(5): 31-40.
[33]	SONG J, ZHANG D. Comprehensive review of caprock-sealing mechanisms for geologic carbon sequestration[J]. Environmental Science & Technology, 2013, 47(1): 9-22.
[34]	王紫剑, 唐玄, 荆铁亚, 等. 中国年封存量百万吨级CO₂地质封存选址策略[J]. 现代地质, 2022, 36(5): 1414-1431.
	WANG Zijian, TANG Xuan, JING Tieya, et al. Site selection strategy for an annual million-ton scale CO₂ geological storage in China[J]. Geoscience, 2022, 36(5): 1414-1431.
[35]	陈博文, 王锐, 李琦, 等. CO₂地质封存盖层密闭性研究现状与进展[J]. 高校地质学报, 2023, 29(1): 85-99.
	CHEN Bowen, WANG Rui, LI Qi, et al. Status and advances of research on caprock sealing properties of CO₂ geological storage[J]. Geological Journal of China Universities, 2023, 29(1): 85-99.
[36]	陈晨, 何邢益, 牛庆合, 等. 超临界CO₂注入煤层对顶板岩石纵波速度及力学响应特征研究[J]. 煤田地质与勘探, 2021, 49(5): 98-104.
	CHEN Chen, HE Xingyi, NIU Qinghe, et al. Study on P-wave velocity and mechanical response characteristic of rock in coal seam roof with supercritical CO₂ injection[J]. Coal Geology & Exploration, 2021, 49(5): 98-104.
[37]	侯冰, 宋振云, 贾建鹏, 等. 超临界二氧化碳对致密砂岩力学特性影响的实验研究 [J]. 中国海上油气, 2018, 30(5): 109-115.
	HOU Bing, SONG Zhenyun, JIA Jianpeng, et al. Experimental study on the effect of supercritical carbon dioxide on mechanical properties of tight sandstone [J]. China Offshore Oil and Gas, 2018, 30(5): 109-115.
[38]	于子望, 卢帅屹, 白林, 等. CO₂地质封存岩石力学问题研究进展[J]. 吉林大学学报(地球科学版), 2023, 53: 1-15.
	YU Ziwang, LU Shuaiyi, BAI Lin, et al. Research progress on rock mechanics of CO₂ geological sequestration[J]. Journal of Jilin University (Earth Science Edition), 2023, 53: 1-15.
[39]	刘思雨, 杨国栋, 黄冕, 等. 人工裂缝参数对CO₂-ESGR中CO₂封存和CH₄开采的影响[J]. 石油与天然气化工, 2024, 53(2): 94-100.
	LIU Siyu, YANG Guodong, HUANG Mian, et al. Effects of artificial fracture parameters on CO₂ sequestration and CH₄ production in CO₂-ESGR[J]. Chemical Engineering of Oil & Gas, 2024, 53(2): 94-100.
[40]	WANG S, HUANG Z, WU Y S, et al. A semi-analytical correlation of thermal-hydraulic-mechanical behavior of fractures and its application to modeling reservoir scale cold water injection problems in enhanced geothermal reservoirs[J]. Geothermics, 2016, 64: 81-95.
[41]	李会元. 废弃油气藏CO₂埋存过程中盖层完整性的评价[D]. 大庆: 东北石油大学, 2015.
	LI Huiyuan. Evaluation for the caprock integrity of the CO₂ sequestration in depleted oil and gas reservoirs[D]. Daqing: Northeast Petroleum University, 2015.
[42]	崔振东, 刘大安, 曾荣树, 等. CO₂地质封存工程的潜在地质环境灾害风险及防范措施[J]. 地质论评, 2011, 57(5): 700-706.
	CUI Zhendong, LIU Daan, ZENG Rongshu, et al. Potential geological and environmental risks and its prevention measures for CO₂ geological storage projects[J]. Geological Review, 2011, 57(5): 700-706.
[43]	STREIT J E, HILLIS R R. Estimating fault stability and sustainable fluid pressures for underground storage of CO₂ in porous rock[J]. Energy, 2004, 29(9/10): 1445-1456.
[44]	TAGHIPOUR M, GHAFOORI M, LASHKARIPOUR G R, et al. A geomechanical evaluation of fault reactivation using analytical methods and numerical simulation[J]. Rock Mechanics and Rock Engineering, 2021, 54(2): 695-719.
[45]	王展鹏, 刘琦, 叶航, 等. CO₂地质封存泄漏监测技术研究进展[J]. 环境工程, 2023, 41(10): 69-81.
	WANG Zhanpeng, LIU Qi, YE Hang, et al. Research progress on CO₂ geological storage leakage and monitoring[J]. Environmental Engineering, 2023, 41(10): 69-81.

类型	原因	影响	措施
压力聚集	注入量增加、地层封闭性良好、渗透性和孔隙度低	泄漏风险增大、注入效率降低、地层稳定性下降、诱发地震活动	实时监测井底压力，优化注入策略，增强地层渗透性，建立安全评估体系
压力传导	分子间相互作用、流体动力学效应、压力梯度、压力交变	地层压力分布明显、岩石破裂变形、CO₂运移扩散、塌陷或地震等地质灾害	实时监测井底压力和地层压力分布变化，调整注入速度、注入井布局，加强地层稳定性评估
