缝洞型油藏流动实验仿真模拟方法研究

doi:10.13809/j.cnki.cn32-1825/te.2025.04.021

摘要/Abstract

摘要：

缝洞型碳酸盐岩储层储集空间以孔洞、裂缝，基质孔隙为主。其中，孔洞与裂缝分布随机性极强，为油气的主要储集空间与渗流通道。强非均质性使得缝洞型碳酸盐岩储层流体流动特征极为复杂，表现为孔洞内自由流动和裂缝内渗流并存。通常需进行室内物理模拟实验以揭示储层内流体分布规律及特殊流动现象，现有缝洞物理实验模型难以同时达到耐高压和可视化的要求，从而限制了流体在地层条件下流动机理的研究。为了精准表征缝洞型储层中的流体流动特征，同时降低实验研究成本，基于流体动力学和计算机仿真模拟技术，探索了开展缝洞型储层流体流动实验仿真模拟的可行性。通过对缝洞物理实验模型中自由流动区域和渗流区域的流动特征进行模拟分析，发现地层温度与压力条件下流体在物理实验模型中的流动以低雷诺数Stokes（斯托克斯）流动为主，以此为基础对传统自由流方程进行简化，采用统一的动量方程表征模型中的自由流动和渗流，在欧拉方程中引入黏性阻力系数等参数，以表征渗流区域内的多相流动特征，实现了缝洞模型中不同流态耦合的一体化模拟。选用3D缝洞数字模型进行了流动仿真，对比模拟结果，验证了统一流动模型的可靠性。模拟结果表明：对于典型缝洞物理模型流动实验，基于Stokes方程的层流模型可以达到传统Darcy-NS耦合模型的模拟精度，具有较好的可靠性，且能有效提升仿真模拟的运算效率，为缝洞型储层的流动机理研究提供了一种新的研究方法。

关键词: 缝洞型油藏, 3D打印, 仿真模拟, Navier-Stokes方程, Darcy方程

Abstract:

The storage space of fracture-cavity carbonate reservoirs is primarily composed of fractures, cavities, and matrix pores. Among them, fractures and cavities exhibit highly random distribution, serving as the main storage spaces and seepage pathways for oil and gas. The strong heterogeneity of these reservoirs leads to highly complex fluid flow behavior, characterized by the coexistence of free flow occurring in cavities and seepage flow in fractures. Indoor physical simulation experiments are usually required to reveal the fluid distribution patterns and unique flow phenomena within the reservoir. However, current physical models for fracture-cavity systems struggle to meet both high-pressure resistance and visualization requirements, thus limiting the investigation of fluid flow mechanisms under reservoir conditions. To accurately characterize fluid flow in fracture-cavity reservoirs while reducing experimental research costs, the feasibility of fluid flow experiment simulations in fracture-cavity reservoirs was explored based on fluid dynamics and computer simulation technology. By simulating and analyzing the flow characteristics in the free flow and seepage regions of the fractured-vuggy physical model, it was found that under reservoir temperature and pressure conditions, fluid flow in the physical model primarily followed low Reynolds number Stokes flow. Based on this, the traditional free flow equation was simplified, and a unified momentum equation was established to describe both free flow and seepage in the model. Parameters such as the viscous resistance coefficient were introduced into the Euler equations to characterize multiphase flow characteristics in the seepage region, achieving an integrated simulation of different flow regimes in the fracture-cavity model. A 3D fracture-cavity digital model was selected for flow simulation, and the comparison of simulation results verified the reliability of the unified flow model. The simulation results indicated that for typical fracture-cavity physical model flow experiments, the laminar flow model based on Stokes equation could achieve the simulation accuracy of the traditional Darcy-Navier-Stokes (Darcy-NS) coupled model, with strong reliability, while significantly improving computational efficiency. This provides a new research method for the study of flow mechanisms in fracture-cavity reservoirs.

Key words: fracture-cavity reservoir, 3D printing, simulation, Navier-Stokes equation, Darcy equation

中图分类号:

TE319

惠健. 缝洞型油藏流动实验仿真模拟方法研究[J]. 油气藏评价与开发, 2025, 15(4): 704-710.

HUI Jian. Study on simulation methods for flow experiments in fracture-cavity reservoirs[J]. Petroleum Reservoir Evaluation and Development, 2025, 15(4): 704-710.

图/表 10

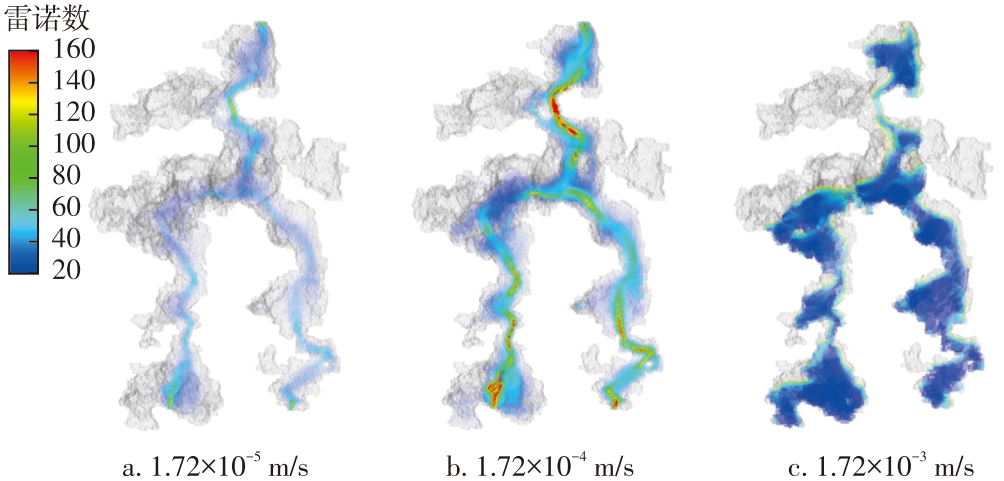

图1

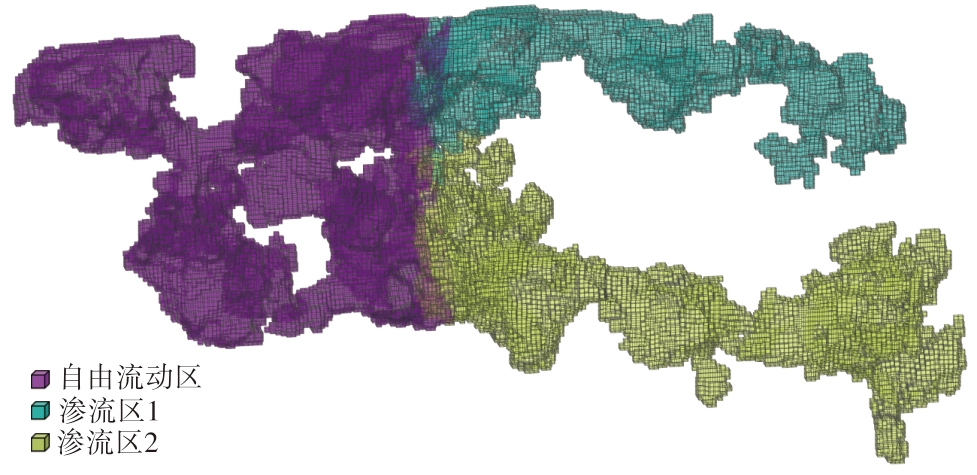

图2

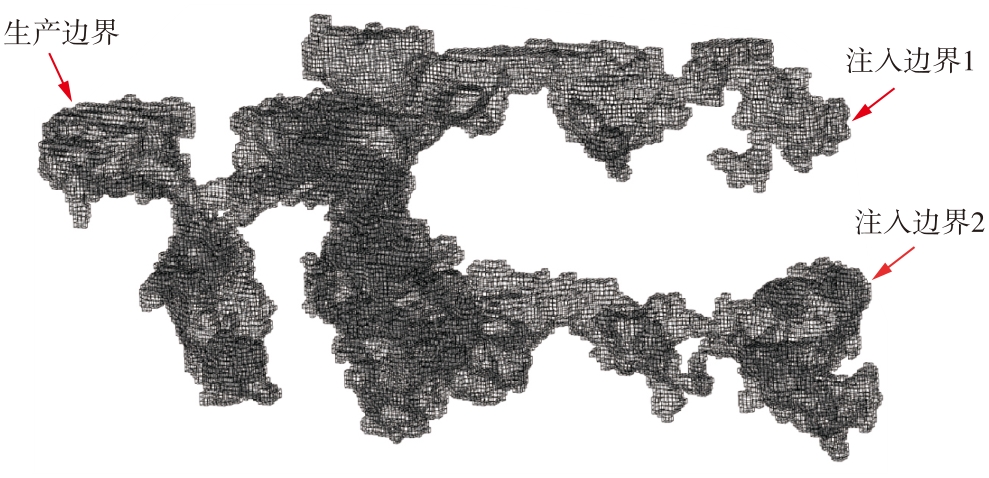

图3

表1

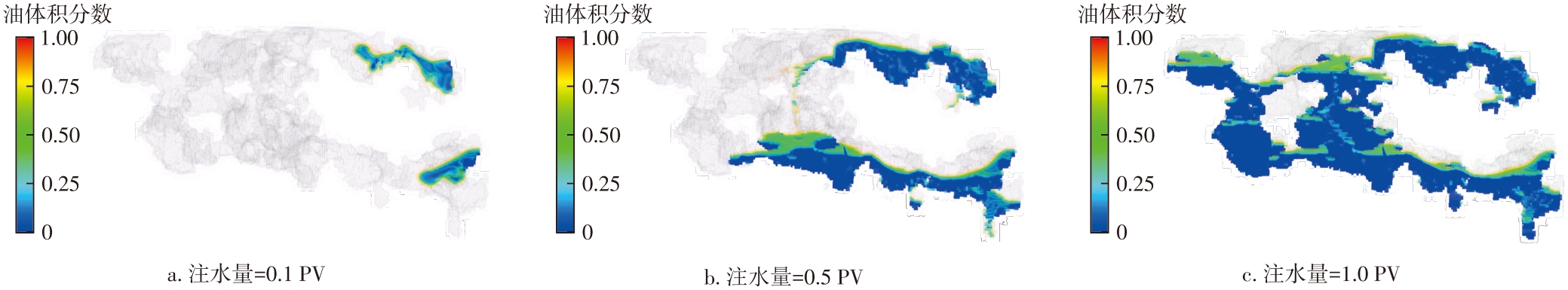

图4

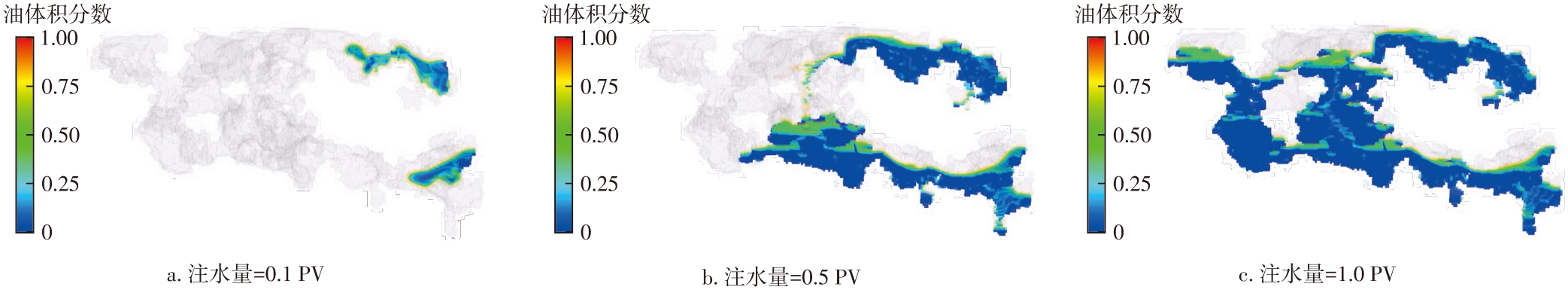

图5

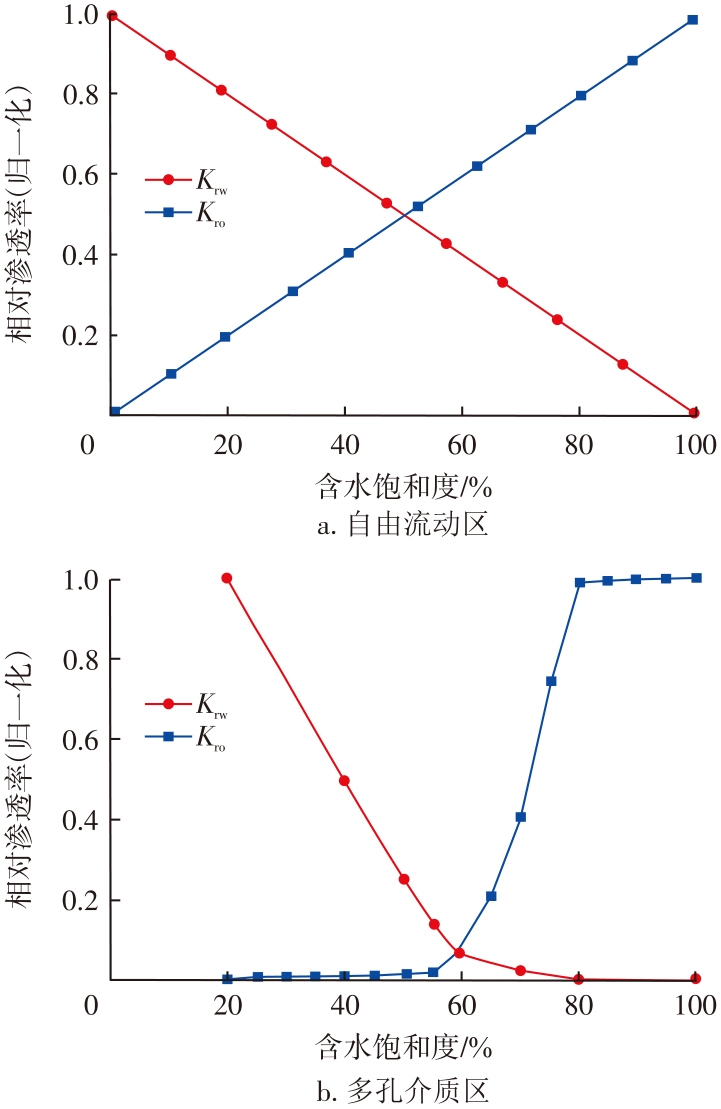

图6

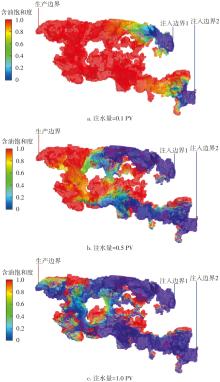

图7

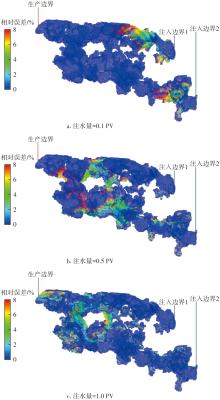

图8

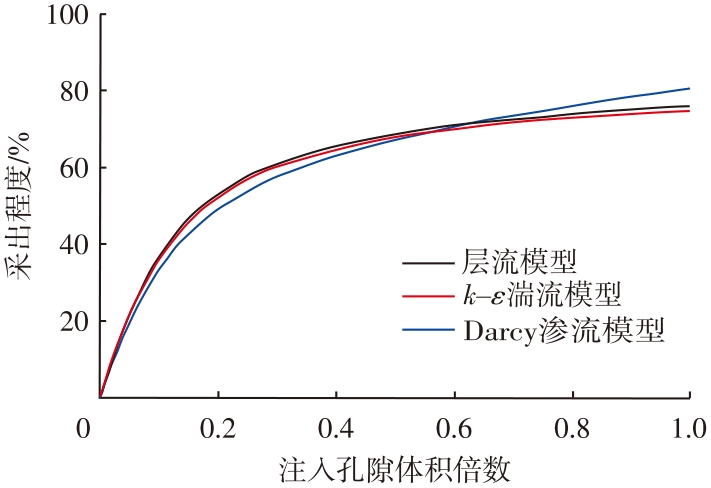

图9

参考文献 24

[1]	李阳, 康志江, 薛兆杰, 等. 碳酸盐岩深层油气开发技术助推我国石油工业快速发展[J]. 石油科技论坛, 2021, 40(3): 33-42.
	LI Yang, KANG Zhijiang, XUE Zhaojie, et al. Deep carbonate oil and gas development technology fuels China’s petroleum industrial development[J]. Petroleum Science and Technology Forum, 2021, 40(3): 33-42.
[2]	胡文革. 塔河碳酸盐岩缝洞型油藏开发技术及攻关方向[J]. 油气藏评价与开发, 2020, 10(2): 1-10.
	HU Wenge. Development technology and research direction of fractured-vuggy carbonate reservoirs in Tahe Oilfield[J]. Reservoir Evaluation and Development, 2020, 10(2): 1-10.
[3]	汪周华, 肖阳, 郭平, 等. 缝洞型碳酸盐岩气藏高温高压气水两相渗流特征[J]. 油气藏评价与开发, 2017, 7(2): 47-52.
	WANG Zhouhua, XIAO Yang, GUO Ping, et al. Gas-water flowing characteristics under high temperature and high pressure in fractured-cavity carbonate gas reservoir[J]. Reservoir Evaluation and Development, 2017, 7(2): 47-52.
[4]	吕爱民, 李刚柱, 谢昊君, 等. 缝洞单元注水驱油可视化物理模拟研究[J]. 科学技术与工程, 2015, 15(14): 50-54.
	Aimin LYU, LI Gangzhu, XIE Haojun, et al. Study on the visual modeling of water flooding in fractured-vuggy unit[J]. Science Technology and Engineering, 2015, 15(14): 50-54.
[5]	惠健, 刘学利, 汪洋, 等. 塔河油田缝洞型油藏注气替油机理研究[J]. 钻采工艺, 2013, 36(2): 55-57.
	HUI Jian, LIU Xueli, WANG Yang, et al. Mechanism research on gas injection to displace the oil remaining in fractured-vuggy reservoirs of Tahe Oilfield[J]. Drilling & Production Technology, 2013, 36(2): 55-57.
[6]	孙贺东, 李世银, 刘志良, 等. 缝洞型碳酸盐岩凝析气藏提高采收率关键技术[J]. 天然气工业, 2023, 43(1): 113-121.
	SUN Hedong, LI Shiyin, LIU Zhiliang, et al. EOR technologies for fractured-vuggy carbonate condensate gas reservoirs[J]. Natural Gas Industry, 2023, 43(1): 113-121.
[7]	刘学利, 彭小龙, 杜志敏, 等. 油水两相流Darcy-Stokes模型[J]. 西南石油大学学报, 2007(6): 89-92.
	LIU Xueli, PENG Xiaolong, DU Zhimin, et al. Oil water two phases flow Darcy-Stokes mode[J]. Journal of Southwest Petroleum University, 2007(6): 89-92.
[8]	康志江. 缝洞型碳酸盐岩油藏数值模拟研究与应用[D]. 武汉: 中国地质大学, 2014.
	KANG Zhijiang. Research and application on numerical simulation of fractured-cave carbonate reservoir[D]. Wuhan: China University of Geosciences, 2014.
[9]	郑松青, 李阳, 张宏方. 碳酸盐岩缝洞型油藏网络模型[J]. 中国石油大学学报(自然科学版), 2010, 34(3): 72-75.
	ZHENG Songqing, LI Yang, ZHANG Hongfang. Fracture-cavity network model for fracture-cavity carbonate reservoir[J]. Journal of China University of Petroleum(Edition of Natural Science), 2010, 34(3): 72-75.
[10]	李亚军, 姚军, 黄朝琴, 等. 基于Darcy-Stokes耦合模型的缝洞型介质等效渗透率分析[J]. 中国石油大学学报(自然科学版), 2011, 35(2): 91-95.
	LI Yajun, YAO Jun, HUANG Zhaoqin, et al. Estimating equivalent permeability of fractured-vuggy media based on coupled Darcy-Stokes model[J]. Journal of China University of Petroleum(Edition of Natural Science), 2011, 35(2): 91-95.
[11]	王建峰. 塔河油田油-气-水三相Darcy-stokes流动模型与应用研究[D]. 成都: 西南石油大学, 2018.
	WANG Jianfeng. Oil-gas-water three phase darcy-stokes model and application in Tahe resevoir[D]. Chengdu: Southwest Petroleum University, 2018.
[12]	CAO Y Z, GUNZBURGER M, HUA F, et al. Coupled Stokes-Darcy model with Beavers-Joseph interface boundary condition[J]. Communications in Mathematical Sciences, 2010, 8(1): 1-25.
[13]	BEAVERS G S, JOSEPH D D. Boundary conditions at a naturally permeable wall[J]. Journal of Fluid Mechanics, 1967, 30(1): 197-207.
[14]	SAFFMAN P G. On the boundary condition at the surface of a porous medium[J]. Studies in Applied Mathematics, 1971, 50(2): 93-101.
[15]	BOYER F, LAPUERTA C, MINJEAUD S, et al. Cahn-Hilliard/Navier-Stokes model for the simulation of three-phase flows[J]. Transport in Porous Media, 2010, 82(3): 463-483.
[16]	赵永强, 闫国亮, 谭猛. 应用Darcy-Stokes方程求解缝洞型介质的渗透率[J]. 石油钻探技术, 2010, 38(4): 121-124.
	ZHAO Yongqiang, YAN Guoliang, TAN Meng. Calculation of permeability in fractured-vuggy porous media using Darcy-Stokes equation[J]. Petroleum Drilling Techniques, 2010, 38(4): 121-124.
[17]	李亚军, 姚军, 黄朝琴, 等. 基于Darcy-Stokes耦合模型的缝洞型介质等效渗透率分析[J]. 中国石油大学学报(自然科学版), 2011, 35(2): 91-95.
	LI Yajun, YAO Jun, HUANG Zhaoqin, et al. Estimating equivalent permeability of fractured-vuggy media based on coupled Darcy-Stokes model[J]. Journal of China University of Petroleum(Edition of Natural Science), 2011, 35(2): 91-95.
[18]	ANGOT P. Well-posed Stokes/Brinkman and Stokes/Darcy coupling revisited with new jump interface conditions[J]. ESAIM: Mathematical Modelling and Numerical Analysis, 2018, 52(5): 1875-1911.
[19]	CHELLA R, VIÑALS J. Mixing of a two-phase fluid by cavity flow[J]. Physical Review E, 1996, 53(4): 3832-3840.
[20]	陈渤燕, 曹玉亭, 张勇, 等. 焦炭塔的CFD模拟与温度场调控[J]. 过程工程学报, 2024, 24(4): 414-424.
	CHEN Boyan, CAO Yuting, ZHANG Yong, et al. CFD simulation and temperature regulation of the coke drum[J]. The Chinese Journal of Process Engineering, 2024, 24(4): 414-424.
[21]	OLSSON E, KREISS G. A conservative level set method for two phase flow[J]. Journal of Computational Physics, 2005, 210(1): 225-246.
[22]	PRÜESS J, SIMONETT G. On the two-phase Navier-Stokes equations with surface tension[J]. Interfaces and Free Boundaries, 2010, 12(3): 311-345.
[23]	SOKOLICHIN A, EIGENBERGER G, LAPIN A, et al. Dynamic numerical simulation of gas-liquid two-phase flows Euler/Euler versus Euler/Lagrange[J]. Chemical Engineering Science, 1997, 52(4): 611-626.
[24]	戚涛, 胡勇, 李骞, 等. 多孔介质速度场和流量场分布[J]. 天然气地球科学, 2020, 31(3): 340-347.
	QI Tao, HU Yong, LI Qian, et al. Velocity and flow field in porous media[J]. Natural Gas Geoscience, 2020, 31(3): 340-347.

参数	值
模型边界尺寸/ mm	200×100×100
总有效网格数	1 198 135
多孔介质黏性阻力系数/m^-2	1×10¹⁴（渗透率为10×10^-3 μm²时）
多孔介质区域孔隙度	0.1
水相密度/（kg/m³）	1 140
油相密度/（kg/m³）	810
水相黏度/（mPa•s）	1
油相黏度/（mPa•s）	2
界面张力/（N/m）	0.071
注入流速/（m/s）	4.127×10^-2
注入时间/s	86 400
出口边界条件	表压为0，回流体积分数为1
时间步数	86 400
时间步长/s	1
每步最大迭代数	20
