LARSEN & SKAUGE相渗滞后模型在高温高压CO2-水互驱实验中的适应性

doi:10.13809/j.cnki.cn32-1825/te.2025.04.010

摘要/Abstract

摘要：

多孔介质中的相渗滞后效应经多年实验研究已经形成了较为统一的结论。由于相渗滞后效应的影响，气水交替过程中不同周期的相渗曲线形态、各束缚相饱和度等参数都受到饱和路径及饱和历史的影响变化。涉及多相渗流交变工况的石油工程应用不能忽略相渗滞后现象。现有CO₂-水交替过程的数值模拟研究中对相渗滞后效应考虑不足，导致开发过程中CO₂埋存量及油采收率等关键参数的数值模拟预测结果与实际情况存在偏差。因此，基于LARSEN & SKAUGE三相相渗滞后模型，设计并开展了含油岩心高温高压条件下的多周期CO₂-水互驱实验，系统分析了不同起始注入相在混相或非混相条件下气水交替过程中相渗曲线的变化；通过LARSEN & SKAUGE三相相渗滞后模型进行了数值模拟岩心实验拟合，并对比了由实验测定的相渗滞后参数与拟合校正后滞后参数的拟合结果。结果表明：非混相实验中的滞后现象较混相实验更为显著。此外，岩心的初始饱和状态对气水交替驱替效果也有影响。由实验测得的滞后参数仅适用于初始拟合值，在不同工况的应用场景需要开展单独实验拟合。该研究结果可为评估CO₂-水交替过程中的相渗滞后效应提供参考，揭示多周期气水交替驱替过程中的相渗曲线变化规律，提高油采收率和CO₂埋存相渗滞后效应数值模拟研究的准确性。

关键词: 相渗滞后, CO₂-气水交替, 高温高压, 数值模拟, LARSEN & SKAUGE模型

Abstract:

The relative permeability hysteresis effect in porous media has been studied extensively over many years, leading to relatively consistent conclusions. Due to the influence of this hysteresis effect, parameters such as the shapes of relative permeability curves across different cycles and the saturation levels of each trapped phase are affected by the saturation path and saturation history during gas-water alternating injection processes. In petroleum engineering applications involving multi-phase flow under alternating conditions, the relative permeability hysteresis phenomenon cannot be neglected. Current numerical simulation studies on CO₂-water alternating processes often fail to adequately consider the relative permeability hysteresis effect, leading to discrepancies between simulated and actual results for key parameters such as CO₂ storage capacity and oil recovery rates. Therefore, based on the Larsen & Skauge three-phase relative permeability hysteresis model, multi-cycle CO₂-water alternating injection experiments were designed and conducted under high-temperature and high-pressure conditions using oil-bearing cores. The variations in relative permeability curves during gas-water alternating injection with different initial injection phases under both miscible and immiscible conditions were systematically analyzed. The Larsen & Skauge three-phase relative permeability hysteresis model was used to fit the core experimental data numerically, and the fitting results using experimentally measured hysteresis parameters were compared with those obtained after parameter calibration. The results showed that hysteresis phenomena were more pronounced in immiscible experiments compared to miscible ones. Additionally, the core’s initial saturation state influenced the gas-water alternating displacement effect. The experimentally determined hysteresis parameters were only valid as initial fitting values, and separate experimental fittings are required for different operating conditions. These findings provide a reference for evaluating the relative permeability hysteresis effect in CO₂-water alternating processes, reveal the variation patterns of relative permeability curves during multi-cycle gas-water alternating displacement, and improve the accuracy of numerical simulation studies on hysteresis effects related to oil recovery and CO₂ storage.

Key words: relative permeability hysteresis, CO₂-water alternating injection, high temperature and pressure, numerical simulation, LARSEN & SKAUGE model

中图分类号:

TE319

王烁石,纪强,郭平, 等. LARSEN & SKAUGE相渗滞后模型在高温高压CO₂-水互驱实验中的适应性[J]. 油气藏评价与开发, 2025, 15(4): 613-624.

WANG Shuoshi,JI Qiang,GUO Ping, et al. Applicability of LARSEN & SKAUGE relative permeability hysteresis model in high-temperature and high-pressure CO₂-water alternating injection experiments[J]. Petroleum Reservoir Evaluation and Development, 2025, 15(4): 613-624.

图/表 20

表1

表2

表3

表4

表5

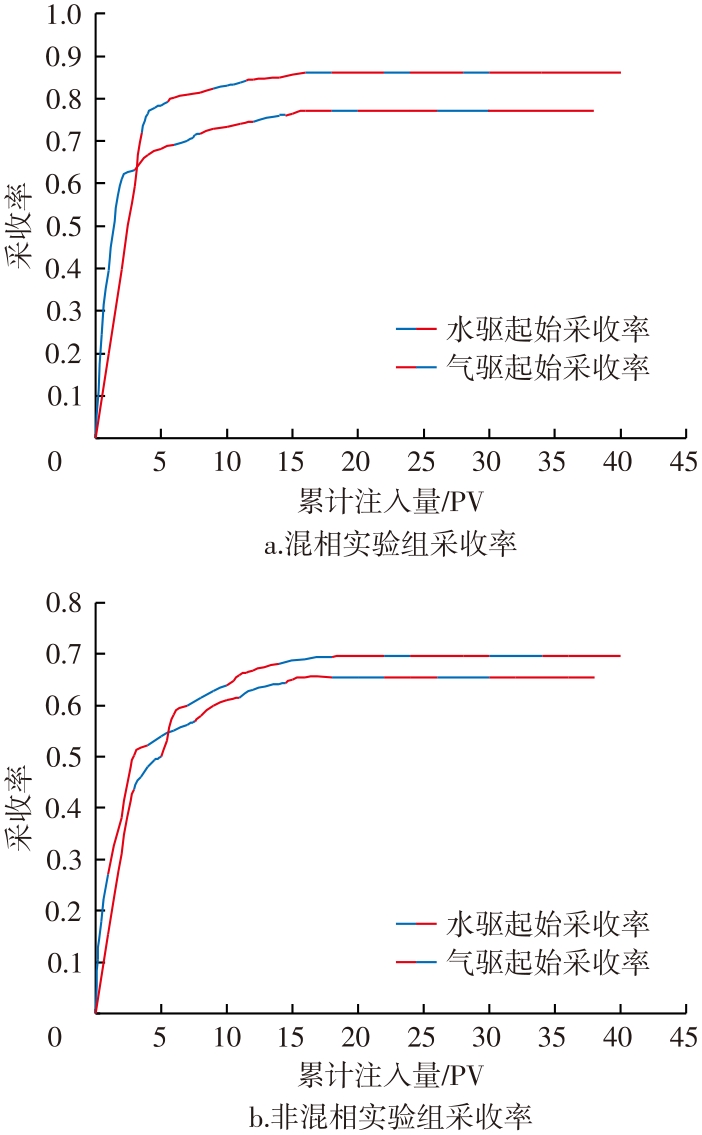

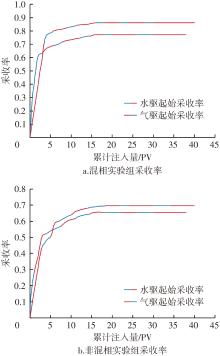

图1

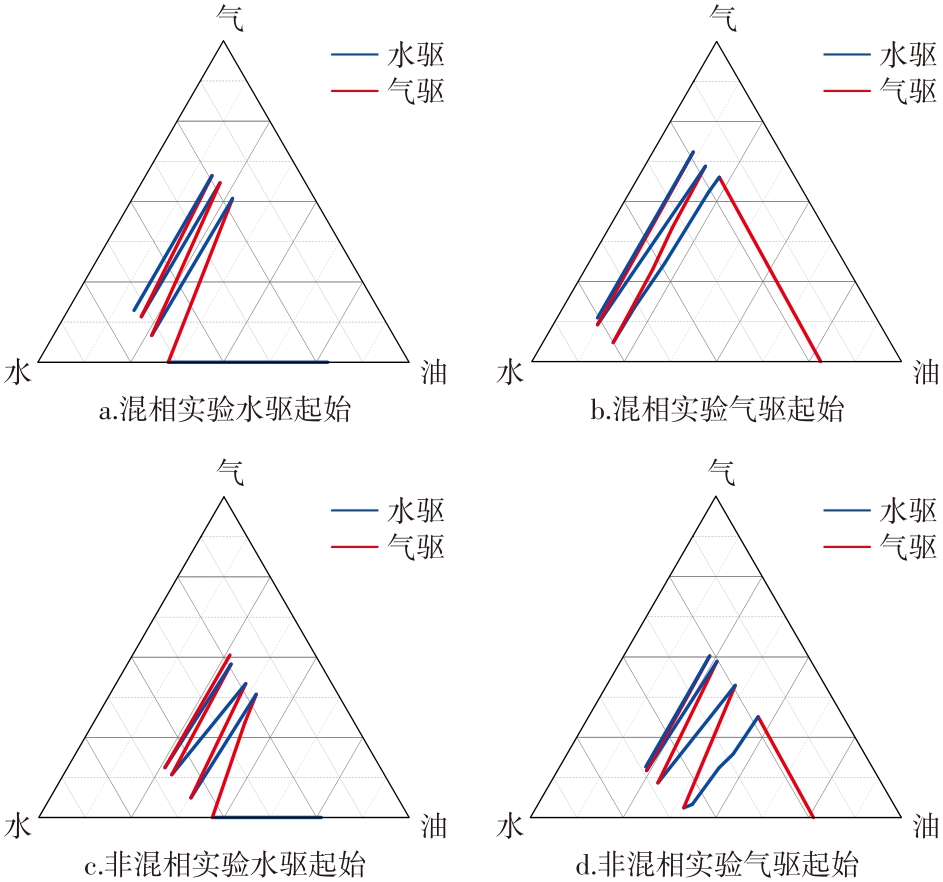

图2

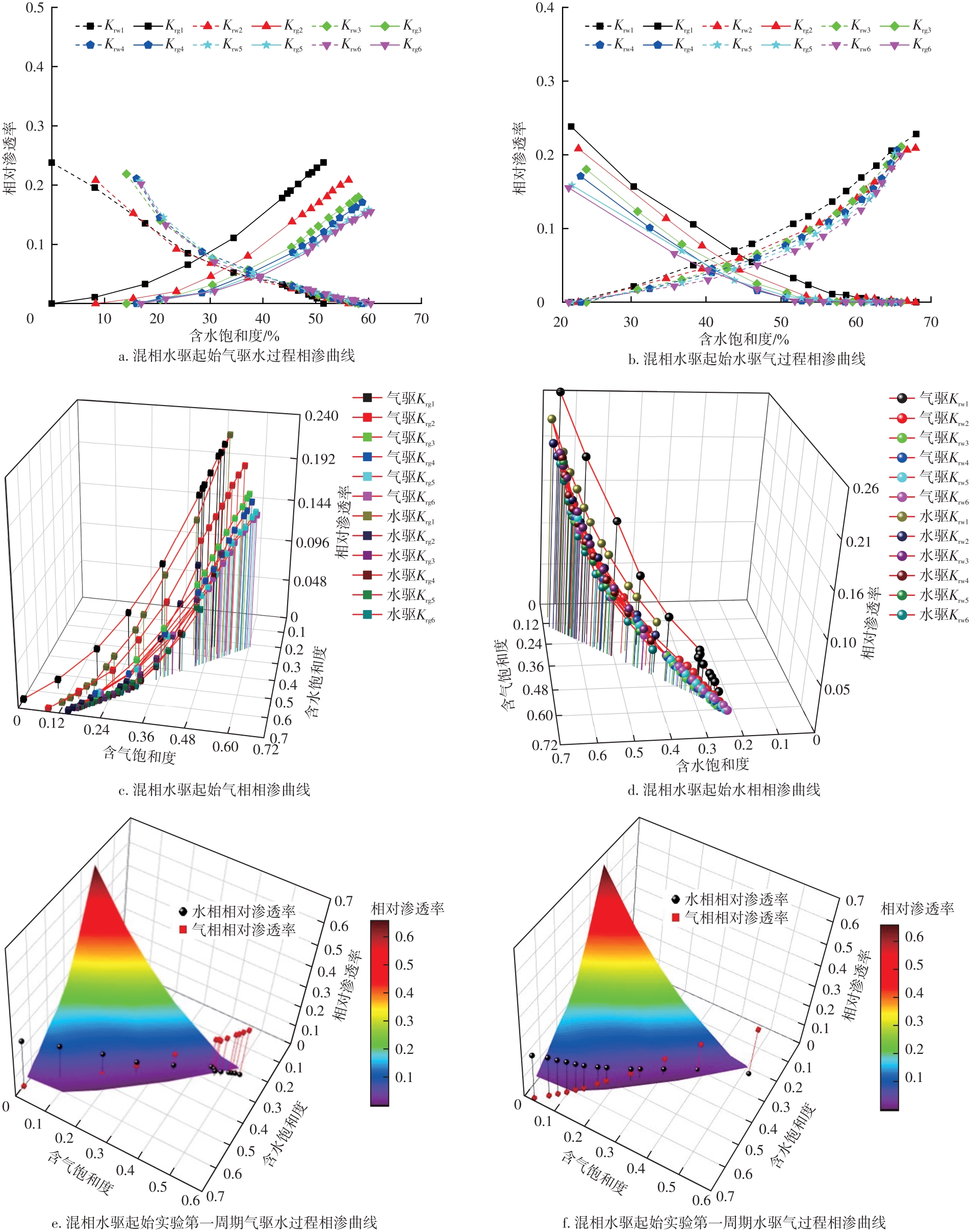

图3

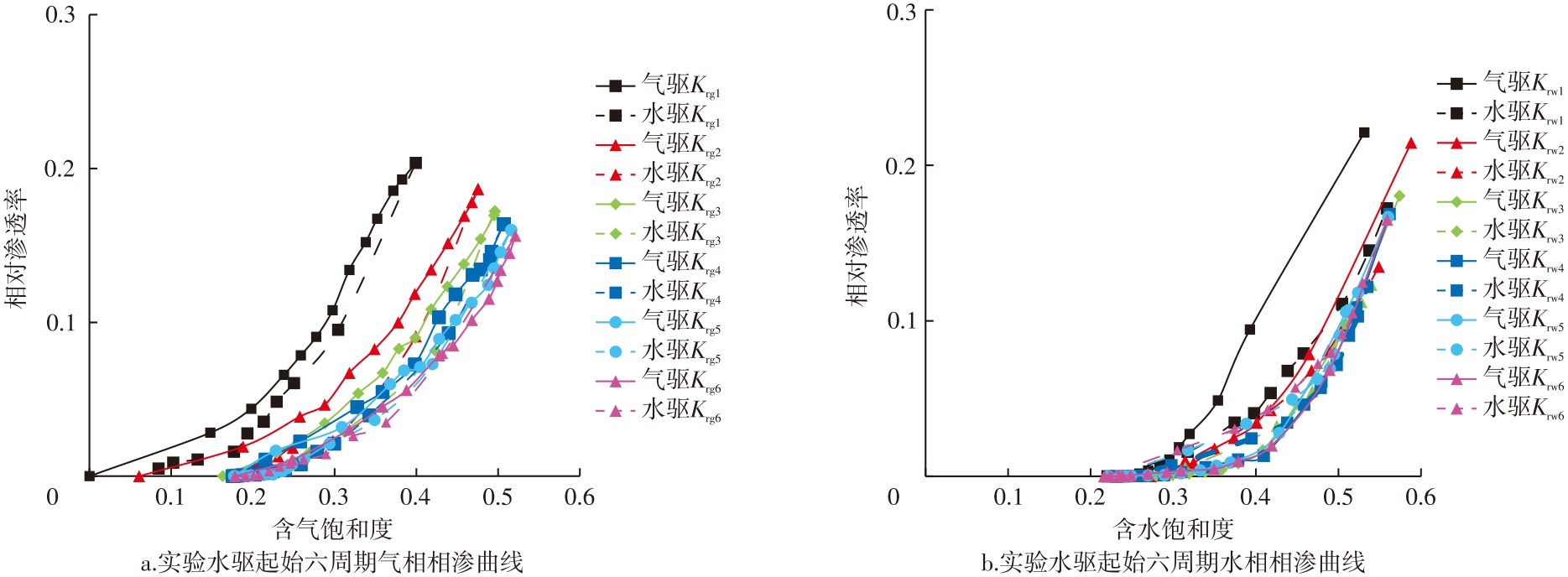

图4

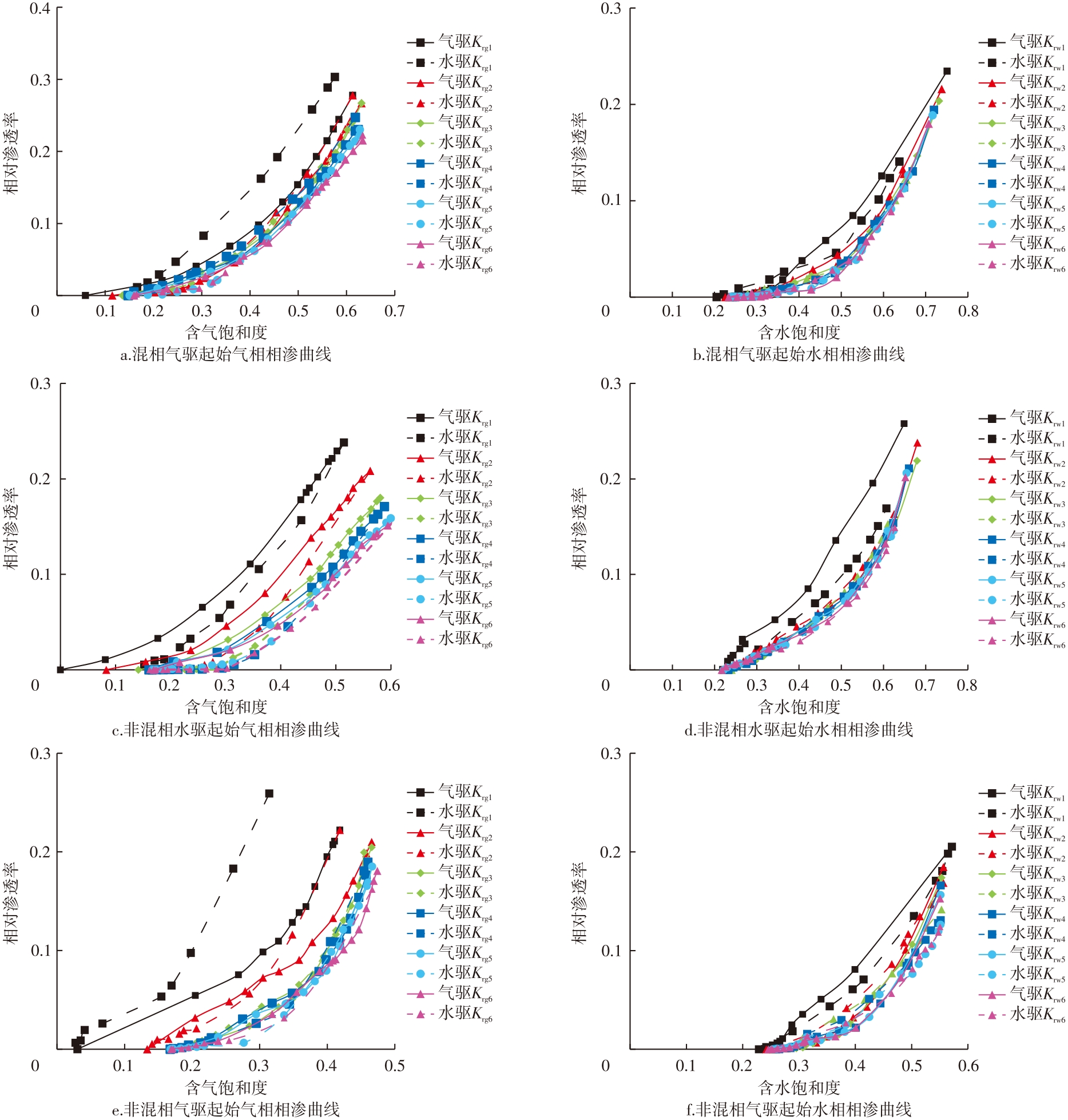

图5

图6

表6

图7

表7

表8

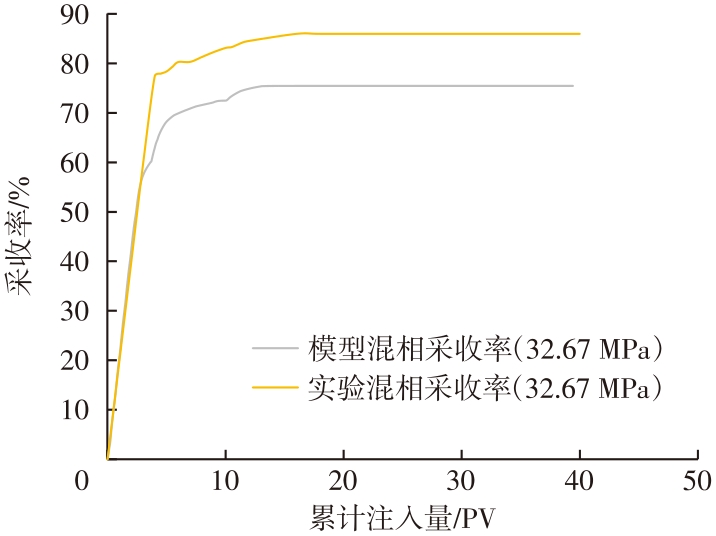

图8

表9

图9

表10

图10

参考文献 34

[1]	SALTER G R J A. The effect of pore-structure on hysteresis in relative permeability and capillary pressure: Pore-level modeling[J]. Transport in Porous Media, 1990, 5(2): 103-151.
[2]	MASALMEH S. Experimental measurements of capillary pressure and relative permeability hysteresis[C]// Paper SCA-2001-23 presented at the SCA Conference, Edinburgh, Scotland, September, 2001.
[3]	FATEMI S M, SOHRABI M, JAMIOLAHMADY M, et al. Experimental and theoretical investigation of gas/oil relative permeability hysteresis under low oil/gas interfacial tension and mixed-wet conditions[J]. Energy & Fuels, 2012, 26(7): 4366-4382.
[4]	ELHAJ M A, ENAMUL HOSSAIN M, IMTIAZ S A, et al. Hysteresis of wettability in porous media: a review[J]. Journal of Petroleum Exploration and Production Technology, 2020, 10: 1897-1905.
[5]	FLETT M, GURTON R, TAGGART I. The function of gas-water relative permeability hysteresis in the sequestration of carbon dioxide in saline formations[C]// Paper SPE-88485-MS presented at the SPE Asia Pacific Oil and Gas Conference and Exhibition, Perth, Australia, October 2004.
[6]	ALIZADEH M R, FATEMI M, MOUSAVI M. Direct numerical simulation of the effects of fluid/fluid and fluid/rock interactions on the oil displacement by low salinity and high salinity water: Pore-scale occupancy and displacement mechanisms[J]. Journal of Petroleum Science & Engineering, 2021, 196: 107765.
[7]	IGLAUER S. CO₂-water-rock wettability: Variability, influencing factors, and implications for CO₂ geostorage[J]. Accounts of chemical research, 2017, 50(5): 1134-1142.
[8]	郑若楠, 魏钦廉. 合水地区Z183区块长72致密储层宏观非均质性及其主控因素[J]. 石油地质与工程, 2024, 38(2): 13-21.
	ZHENG Ruonan, WEI Qinlian. Macroscopic heterogeneity and its main controlling factors of the Chang 72 tight reservoir in Block Z183 of the Heshui area[J]. Petroleum Geology and Engineering, 2024, 38(2): 13-21.
[9]	张明龙, 王磊, 崔强, 等. 二氧化碳驱油储层物性变化实验研究[J]. 世界石油工业, 2023, 30(3): 90-96.
	ZHANG Minglong, WANG Lei, CUI Qiang, et al. Experimental study on reservoir physical property changes during CO₂ flooding[J]. World Petroleum Industry, 2023, 30(3): 90-96.
[10]	LAND C S. Calculation of imbibition relative permeability for two-and three-phase flow from rock properties[J]. Society of Petroleum Engineers Journal, 1968, 8(2): 149-156.
[11]	KILLOUGH J E. Reservoir simulation with history-dependent saturation functions[J]. Society of Petroleum Engineers Journal, 1976, 16(1): 37-48.
[12]	CARLSON F M. Simulation of relative permeability hysteresis to the nonwetting phase[C]// Paper SPE-10157-MS presented at the SPE Annual Technical Conference and Exhibition, San Antonio, Texas, October 1981.
[13]	PARKER J C, LENHARD R J. A model for hysteretic constitutive relations governing multiphase flow: 1. Saturation-pressure relations[J]. Water Resources Research, 1987, 23(12): 2187-2196.
[14]	PARKER J C, LENHARD R J, KUPPUSAMY T. A parametric model for constitutive properties governing multiphase flow in porous media[J]. Water resources research, 1987, 23(4): 618-624.
[15]	LARSEN J A, SKAUGE A. Methodology for numerical simulation with cycle-dependent relative permeabilities[J]. SPE Journal, 1998, 3(2): 163-173.
[16]	SHAHVERDI H, SOHRABI M. Relative permeability characterization for water-alternating-gas injection in oil reservoirs[J]. SPE Journal, 2016, 21(3): 799-808.
[17]	SHAHVERDI H, SOHRABI M. Modeling of cyclic hysteresis of three-phase relative permeability during water-alternating-gas injection[J]. SPE Journal, 2015, 20(1): 35-48.
[18]	AGHABOZORGI S, SOHRABI M. Accurate modeling of relative permeability hysteresis in water alternating gas experiments[C]// Paper SPE-197615-MS presented at the Abu Dhabi International Petroleum Exhibition & Conference, Abu Dhabi, UAE, November 2019.
[19]	AGHABOZORGI S, SOHRABI M, FACANHA J. Estimation of three-phase oil relative permeability in WAG experiments[C]// Paper OTC-29924-MS presented at the Offshore Technology Conference Brasil, Rio de Janeiro, Brazil, October 2019.
[20]	LAN Y, GUO P, LIU Y, et al. State of the art on relative permeability hysteresis in porous media: Petroleum engineering application[J]. Applied Sciences, 2024, 14(11): 4639.
[21]	姚振杰, 李剑, 陈芳萍, 等. 延长油田CO₂驱扩大波及体积矿场实践[J]. 石油地质与工程, 2024, 38(5): 84-88.
	YAO Zhenjie, LI Jian, CHEN Fangping, et al. Field practice of CO₂ flooding for expanding swept volume in Yanchang Oilfield[J]. Petroleum Geology and Engineering, 2024, 38(5): 84-88.
[22]	张华珍, 徐海云, 张焕芝, 等. 2022国外油气田开发技术进展[J]. 世界石油工业, 2023, 30(3): 53-60.
	ZHANG Huazhen, XU Haiyun, ZHANG Huanzhi, et al. Progress in foreign oil and gas field development technology in 2022[J]. World Petroleum Industry, 2023, 30(3): 53-60.
[23]	胡书勇, 郭学强, 张佳轶, 等. 双碳愿景下CCUS提高油气采收率技术[J]. 世界石油工业, 2024, 31(1): 81-91.
	HU Shuyong, GUO Xueqiang, ZHANG Jiayi, et al. CCUS technology for enhancing oil and gas recovery under the dual-carbon vision[J]. World Petroleum Industry, 2024, 31(1): 81-91.
[24]	SPITERI E J, JUANES R. Impact of relative permeability hysteresis on the numerical simulation of WAG injection[C]// Paper SPE-89921-MS presented at the SPE Annual Technical Conference and Exhibition, Houston, Texas, September 2004.
[25]	AKBARABADI M, PIRI M. Relative permeability hysteresis and capillary trapping characteristics of supercritical CO₂/brine systems: An experimental study at reservoir conditions[J]. Advances in Water Resources, 2013, 52: 190-206.
[26]	VIEIRA R A M, CARDOSO M A, PIZARRO J O S. An integrated WAG characterization study for an offshore oilfield[C]// Paper OTC-29766-MS presented at the Offshore Technology Conference Brasil, Rio de Janeiro, Brazil, October 2019.
[27]	朱思南, 孙军昌, 魏国齐, 等. 水侵气藏型储气库注采相渗滞后数值模拟修正方法[J]. 石油勘探与开发, 2021, 48(1): 166-174.
	ZHU Sinan, SUN Junchang, WEI Guoqi, et al. Numerical simulation correction method for injection-production relative permeability hysteresis in water-drive gas reservoir-type underground gas storage[J]. Petroleum Exploration and Development, 2021, 48(1): 166-174.
[28]	黄建廷, 潘广明, 吴金涛, 等. 考虑滞后效应的海上弱挥发油藏周期注水研究[J]. 特种油气藏, 2018, 25(4): 112-117.
	HUANG Jianting, PAN Guangming, WU Jintao, et al. Study on cyclic water injection in offshore weakly volatile reservoirs considering hysteresis effect[J]. Special Oil & Gas Reservoirs, 2018, 25(4): 112-117.
[29]	姜涛, 李菊花, 高文君, 等. 气水交替驱不稳定渗流特征数值模拟研究[J]. 油气地质与采收率, 2009, 16(1): 47-50.
	JIANG Tao, LI Juhua, GAO Wenjun, et al. Numerical simulation study on unsteady flow characteristics of gas-water alternating flooding[J]. Petroleum Geology and Recovery Efficiency, 2009, 16(1): 47-50.
[30]	刘子雄, 刘德华, 李菊花, 等. 考虑滞后效应的水气交替近混相驱数值模拟[J]. 断块油气田, 2008, 15(3): 87-90.
	LIU Zixiong, LIU Dehua, LI Juhua, et al. Numerical simulation of near-miscible water-alternating-gas flooding considering hysteresis effect[J]. Fault-Block Oil & Gas Field, 2008, 15(3): 87-90.
[31]	罗波波, 刘峰刚, 王瑞飞, 等. 挥发性致密油藏孔隙结构及高温高压三相相渗实验[J]. 石油地质与工程, 2023, 37(3): 69-75.
	LUO Bobo, LIU Fenggang, WANG Ruifei, et al. Pore structure of volatile tight oil reservoirs and high-temperature and high-pressure three-phase relative permeability experiments[J]. Petroleum Geology and Engineering, 2023, 37(3): 69-75.
[32]	DIAMOND LARRYN W, AKINFIEV NIKOLAY N. Solubility of CO₂ in water from -1.5 to 100 ℃ and from 0. 1 to 100 MPa: evaluation of literature data and thermodynamic modelling[J]. Fluid Phase Equilibria, 2003, 208(1-2): 265-290.
[33]	FATEMI S M, SOHRABI M. Relative permeabilities hysteresis for oil/water, gas/water and gas/oil systems in mixed-wet rocks[J]. Journal of Petroleum Science and Engineering, 2018, 161: 559-581.
[34]	FATEMI S M, SOHRABI M. Cyclic hysteresis in three-phase relative permeability applicable to WAG injection: Water-wet and mixed-wet systems under low gas/oil IFT[C]// Paper SPE-159816-MS presented at the SPE Annual Technical Conference and Exhibition, San Antonio, Texas, USA, October 2012.

pH值	矿化度/（mg/L）	水型	离子质量浓度/（mg/L）
pH值	矿化度/（mg/L）	水型	Ca²⁺	Mg²⁺	Cl^-	SO^4-	CO₃^2-	HCO₃^-	K⁺、Na⁺
8.00	11 576.33	碳酸氢钠	25.65	6.32	5 221.43	63.40	48.61	2 031.36	4 179.56

组分	质量分数/%	组分	质量分数/%
N₂	0.72	C₉	3.52
CO₂	0.28	C₁₀	3.43
C₁	17.61	C₁₁	2.91
C₂	2.05	C₁₂	3.04
C₃	2.26	C₁₃	3.34
_i C₄	0.52	C₁₄	2.83
nC₄	0.40	C₁₅	3.59
iC₅	0.56	C₁₆	3.33
nC₅	0.66	C₁₇	3.47
C₆	1.27	C₁₈	3.63
C₇	3.70	C₁₉	3.68
C₈	2.73	C₂₀₊	30.50

参数	取值	参数	取值
饱和压力/MPa	5.09	压缩系数/MPa^-1	0.99×10^-3
黏度/（mPa·s）	5.994	体积收缩率/%	7.5
体积系数	1.081 6	单次脱气气油比/（m³/m³）	23.8
最小混相压力/MPa	27.67	平均溶解气体系数/ （m³·m^-3·MPa^-1）	4.658 5

组分	实验温度/℃	压力/MPa	黏度/（mPa·s）	体积系数
组分	实验温度/℃	压力/MPa	黏度/（mPa·s）	不溶解CO₂	溶解CO₂
气样	64	14.30	0.042	0.004 1
气样	64	32.67	0.083	0.002 3
水样	64	14.30	0.509	1.052 3
水样	64	32.67	0.523	1.041 5
油样	64	14.30	0.880	1.091 0	1.841 2
油样	64	32.67	1.210	1.065 0	1.321 1

实验编号	实验温度/℃	实验压力/MPa	驱替方式
1	64	32.67（混相）	水驱油起始的WAG交替驱
2	64	32.67（混相）	气驱油起始的WAG交替驱
3	64	14.30（非混相）	水驱油起始的WAG交替驱
4	64	14.30（非混相）	气驱油起始的WAG交替驱

LARSEN & SKAUGE相渗滞后模型在高温高压CO₂-水互驱实验中的适应性

Applicability of LARSEN & SKAUGE relative permeability hysteresis model in high-temperature and high-pressure CO₂-water alternating injection experiments

RichHTML

PDF (PC)

赞

可视化

摘要/Abstract

引用本文

使用本文

图/表 20

参考文献 34

相关文章 15

Metrics

本文评价

推荐阅读 0

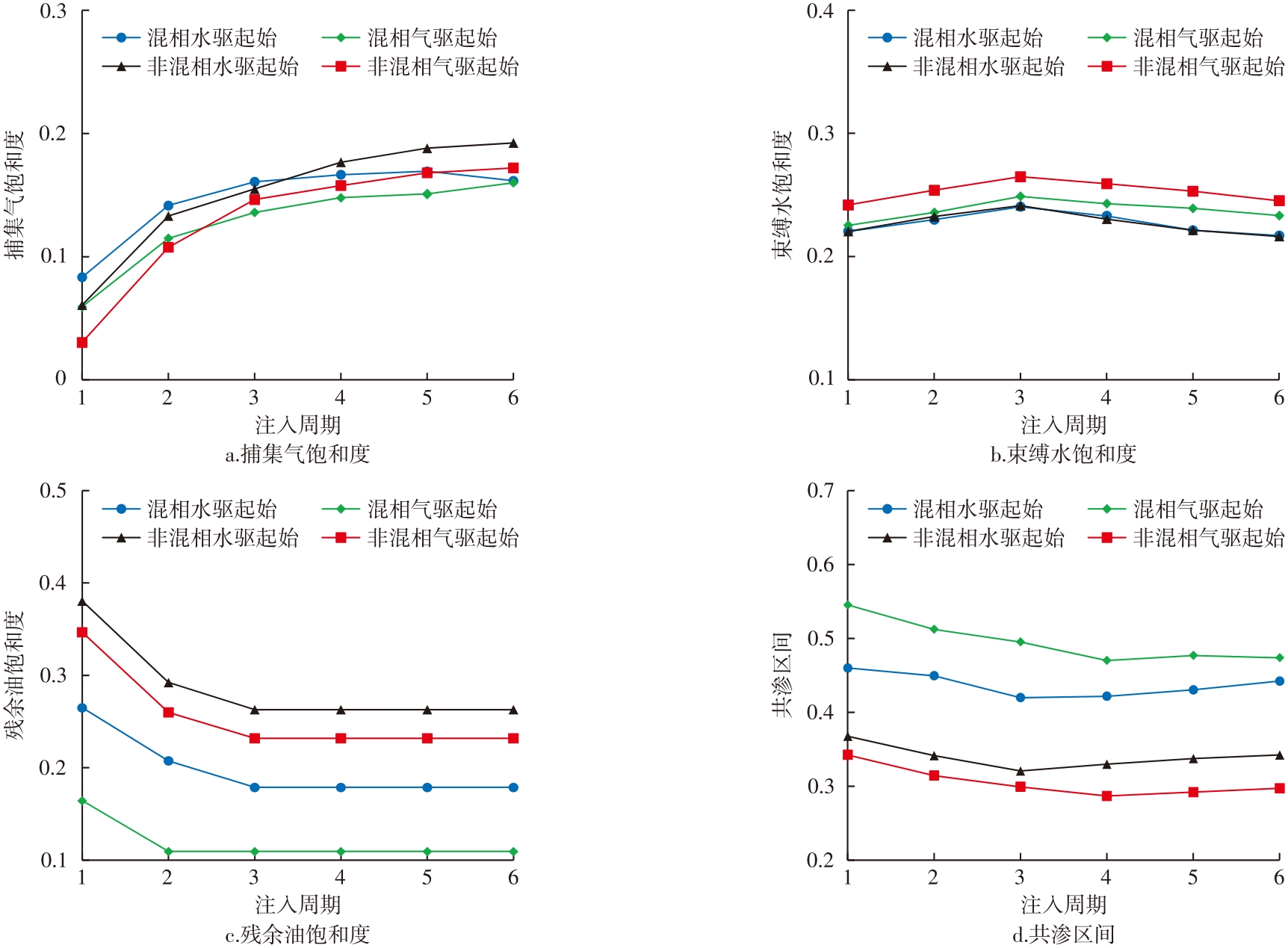

周期	捕集气饱和度/%		残余油饱和度/%
周期	气驱起始	水驱起始	气驱起始	水驱起始
1	3.04	6.07	34.67	38.05
2	10.76	13.31	26.00	29.23
3	14.64	15.50	23.19	26.29
4	15.77	17.67	23.19	26.29
5	16.81	18.81	34.67	38.05
6	17.21	19.24	23.19	26.29

测试项目	实验值	拟合值	误差/%
最小混相压力/MPa	27.67	27.50	0.615
黏度/（mPa·s）	5.99	5.75	3.990
气油比/（m³/m³）	23.80	23.69	0.474
饱和压力/MPa	5.09	5.14	1.000
泡点体积系数	1.08	1.08	0.018

[1]	孙东升, 张顺康, 王智林, 葛政俊, 林波. 苏北断块型圈闭基于安全性CO₂地质封存能力计算方法研究 [J]. 油气藏评价与开发, 2025, 15(4): 641-645.
[2]	张骞, 范昭宇, 王琴, 唐慧敏, 何志辉. 超高温高压低渗气藏多因素产能图版定量研究 [J]. 油气藏评价与开发, 2025, 15(4): 686-693.
[3]	朱苏阳, 彭真, 邸云婷, 彭小龙, 刘东晨, 官文洁. 页岩气产能评价研究进展：内涵、方法和方向 [J]. 油气藏评价与开发, 2025, 15(3): 488-499.
[4]	柴妮娜, 李嘉瑞, 张力文, 王俊杰, 刘亚鹏, 朱伦. 夹层型陆相页岩油储层压裂裂缝扩展实验研究 [J]. 油气藏评价与开发, 2025, 15(1): 124-130.
[5]	盖长城, 李洪达, 任路, 曹伟, 郝杰. 地热数值模拟与油藏数值模拟方法对比分析 [J]. 油气藏评价与开发, 2024, 14(6): 849-856.
[6]	瞿常青, 林千果. 基于通量监测-CFD模拟的CO₂驱油封存地表泄漏大气扩散研究 [J]. 油气藏评价与开发, 2024, 14(6): 885-891.
[7]	张益, 宁崇如, 陈亚舟, 姬玉龙, 赵立阳, 王爱方, 黄晶晶, 于凯怡. 致密油藏大排量注水吞吐技术及参数优化研究 [J]. 油气藏评价与开发, 2024, 14(5): 727-733.
[8]	曹小朋, 刘海成, 李忠新, 陈先超, 江朋宇, 樊浩. 基于EDFM的页岩油水平井注水吞吐优化研究 [J]. 油气藏评价与开发, 2024, 14(5): 734-740.
[9]	廖凯, 张士诚, 谢勃勃. 页岩油体积压裂后合理焖井时间模拟研究 [J]. 油气藏评价与开发, 2024, 14(5): 749-755.
[10]	陈祥, 王冠, 刘平礼, 杜娟, 王铭, 陈伟华, 李金龙, 刘金明, 刘飞. 四川盆地灯影组酸压裂缝导流能力实验和模拟研究 [J]. 油气藏评价与开发, 2024, 14(4): 569-576.
[11]	盖长城,赵忠新,任路,颜艺灿,侯本峰. 中深层水热型地热资源集群式开发井位部署参数研究与应用——以HTC地热田为例 [J]. 油气藏评价与开发, 2024, 14(4): 638-646.
[12]	陈学忠, 赵慧言, 陈满, 徐华卿, 杨建英, 杨晓敏, 唐慧莹. 海陆过渡相页岩储层合层开采数值模拟研究 [J]. 油气藏评价与开发, 2024, 14(3): 382-390.
[13]	张连锋,张伊琳,郭欢欢,李洪生,李俊杰,梁丽梅,李文静,胡书奎. 近废弃油藏延长生命周期开发调整技术 [J]. 油气藏评价与开发, 2024, 14(1): 124-132.
[14]	崔玉东, 陆程, 关子越, 罗万静, 滕柏路, 孟凡璞, 彭越. 南海海域天然气水合物降压开采储层蠕变对气井产能影响 [J]. 油气藏评价与开发, 2023, 13(6): 809-818.
[15]	何海燕, 刘先山, 耿少阳, 孙军昌, 孙彦春, 贾倩. 基于渗流-温度双场耦合的油藏型储气库数值模拟 [J]. 油气藏评价与开发, 2023, 13(6): 819-826.

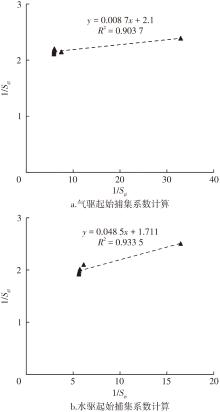

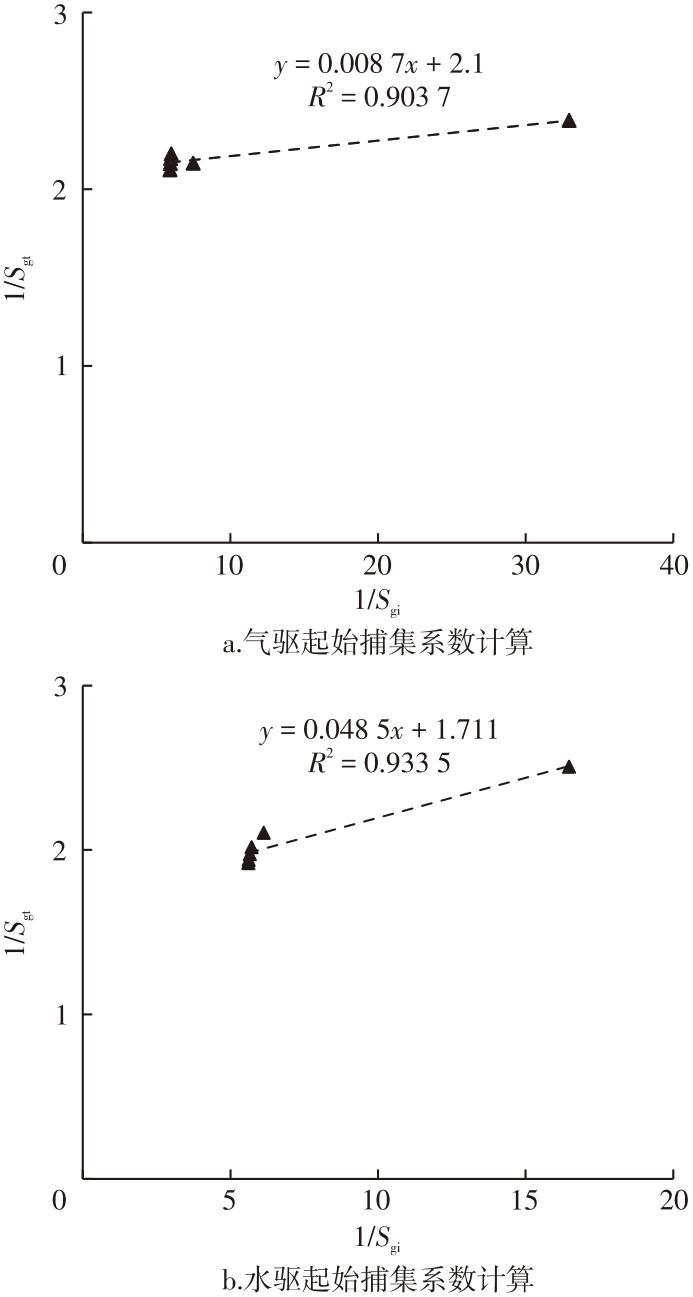

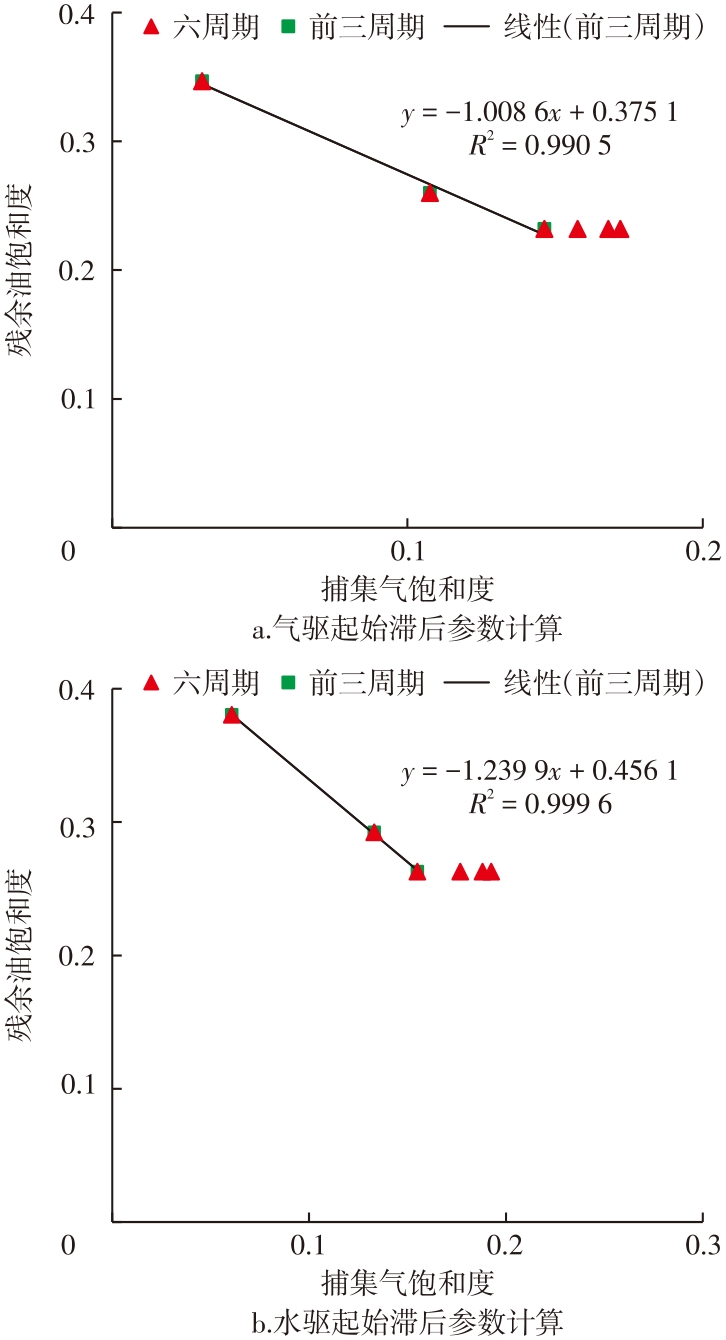

滞后参数	气驱起始	水驱起始
a	1.008	1.239
α	1.631	1.132
C	2.100	1.711

滞后参数	气驱起始	水驱起始
a	0.9	0.3
α	1.1	0.2
C	0.25	0.18
