基于声波远探测技术裸眼老井地下定位研究与验证

doi:10.13809/j.cnki.cn32-1825/te.2025.06.018

Abstract

Abstract:

In the process of converting depleted oil and gas reservoirs into gas storage facilities, identifying and sealing complex old wells is a crucial step. For old wells with ferromagnetic casings, magnetic detection technology is typically employed for localization. However, for open-hole old wells without ferromagnetic beacons, underground positioning relies on inaccurate historical well data, often leading to significant errors. Acoustic remote detection technology, which analyzes acoustic reflection characteristics, theoretically enables the precise positioning of open-hole old wells by detecting and identifying anomalous geological bodies near the borehole. This study systematically investigated the feasibility of this technology for detecting open-hole old wells and their underground positioning from three aspects: acoustic field characteristics, reflection imaging features of an open-hole old well, and data processing and localization for acoustic remote detection. First, a staggered-grid finite-difference time-domain (FDTD) scheme with fourth-order spatial and second-order temporal accuracy was employed to solve the elastic wave equation, simulating acoustic wave propagation around the borehole under various geological conditions. Subsequently, based on acoustic reflection characteristics under actual working conditions and combined with numerical simulation results, the reflection imaging features of the open-hole old well were analyzed. Finally, by processing field data, the detection range and accuracy of the acoustic remote detection technology in practical applications were validated. Experimental results indicated that the acoustic remote detection technology was unaffected by external factors and could effectively determine the spatial position of open-hole old wells at depths up to 3 000 m. The detection range was 4 to 16 m, with a positioning error of less than 0.5 m, indicating its suitability for locating abandoned wells under complex geological conditions. This study demonstrates that acoustic remote detection technology not only overcomes the limitations of traditional positioning methods but also significantly improves the positioning accuracy of open-hole old wells, providing key technical support for the conversion of depleted oil and gas reservoirs into natural gas storage facilities. The application of this technology enhances the safety and efficiency of abandoned well sealing and reduces risks associated with positioning errors. Future research will focus on further optimizing the algorithm, expanding the detection range, and improving positioning accuracy to meet broader engineering requirements.

Key words: acoustic remote detection, open-hole old well, numerical simulation, magnetic detection technology, underground positioning

CLC Number:

TE281

CHE Yang,DONG Jingnan,CHEN Chunyu, et al. Research and validation of underground positioning for open-hole old wells using acoustic remote detection technology[J]. Petroleum Reservoir Evaluation and Development, 2025, 15(6): 1112-1120.

Figures/Tables 14

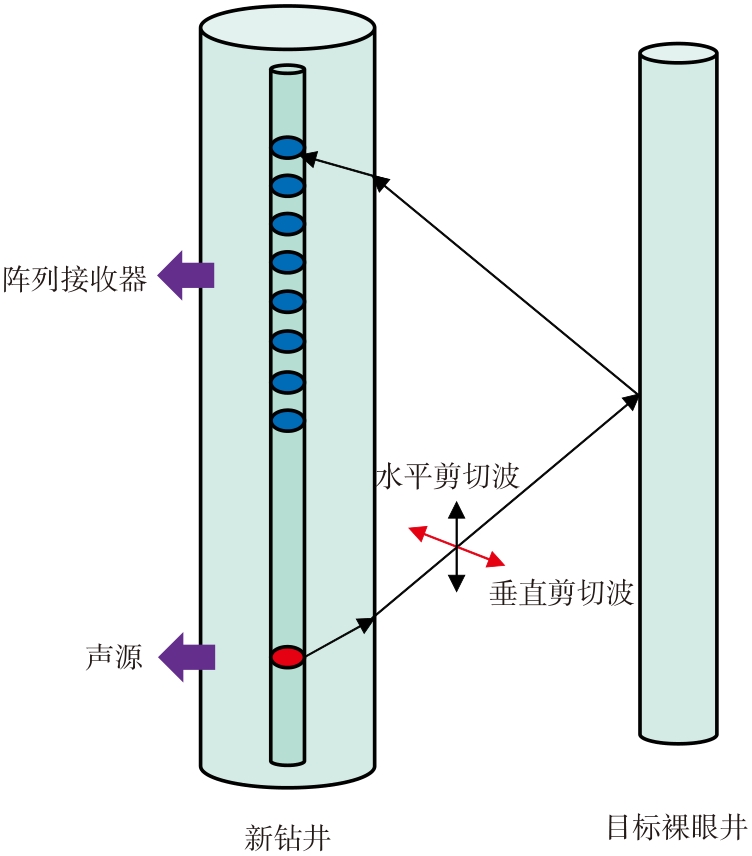

Fig.1

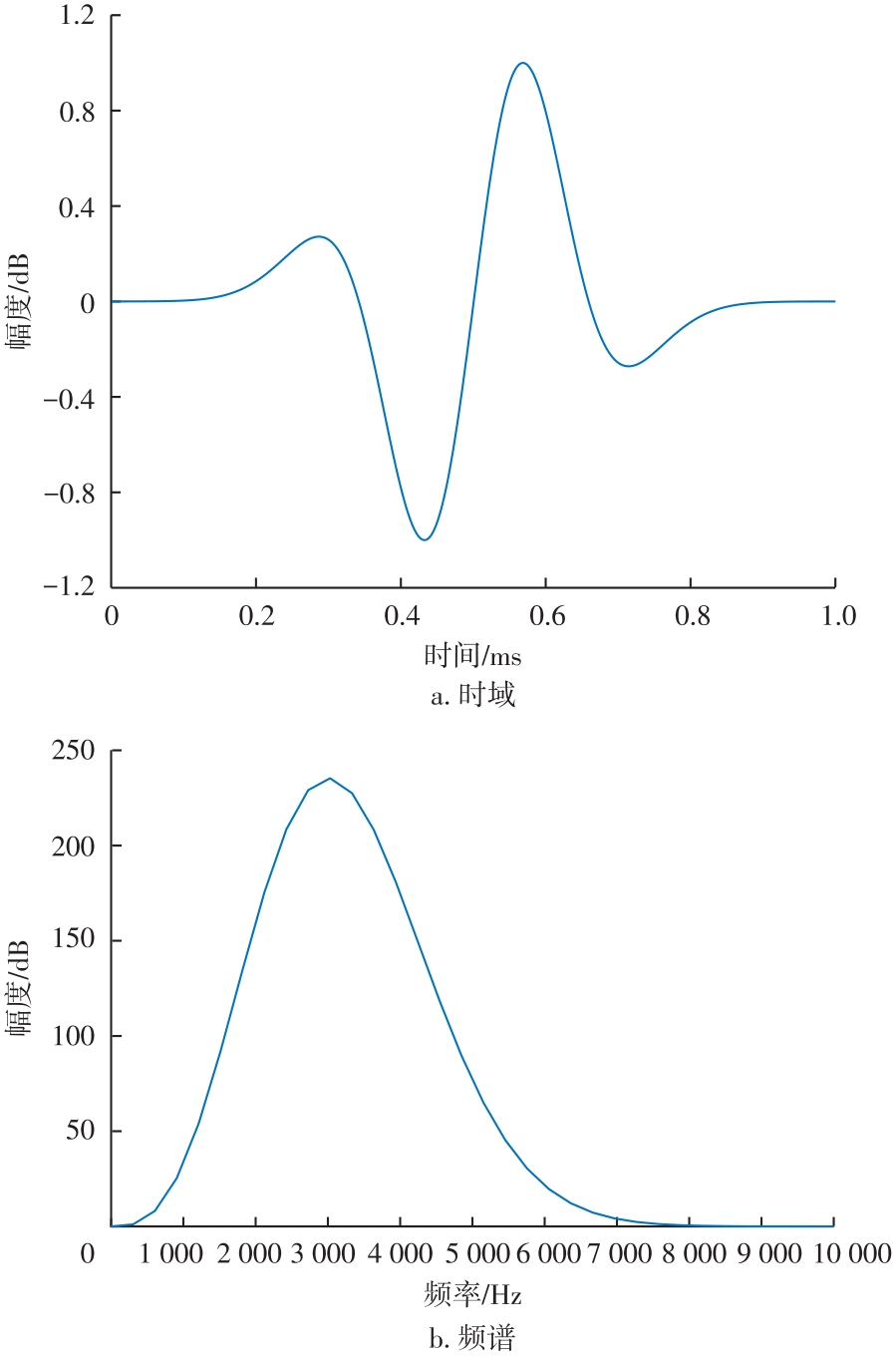

Fig.2

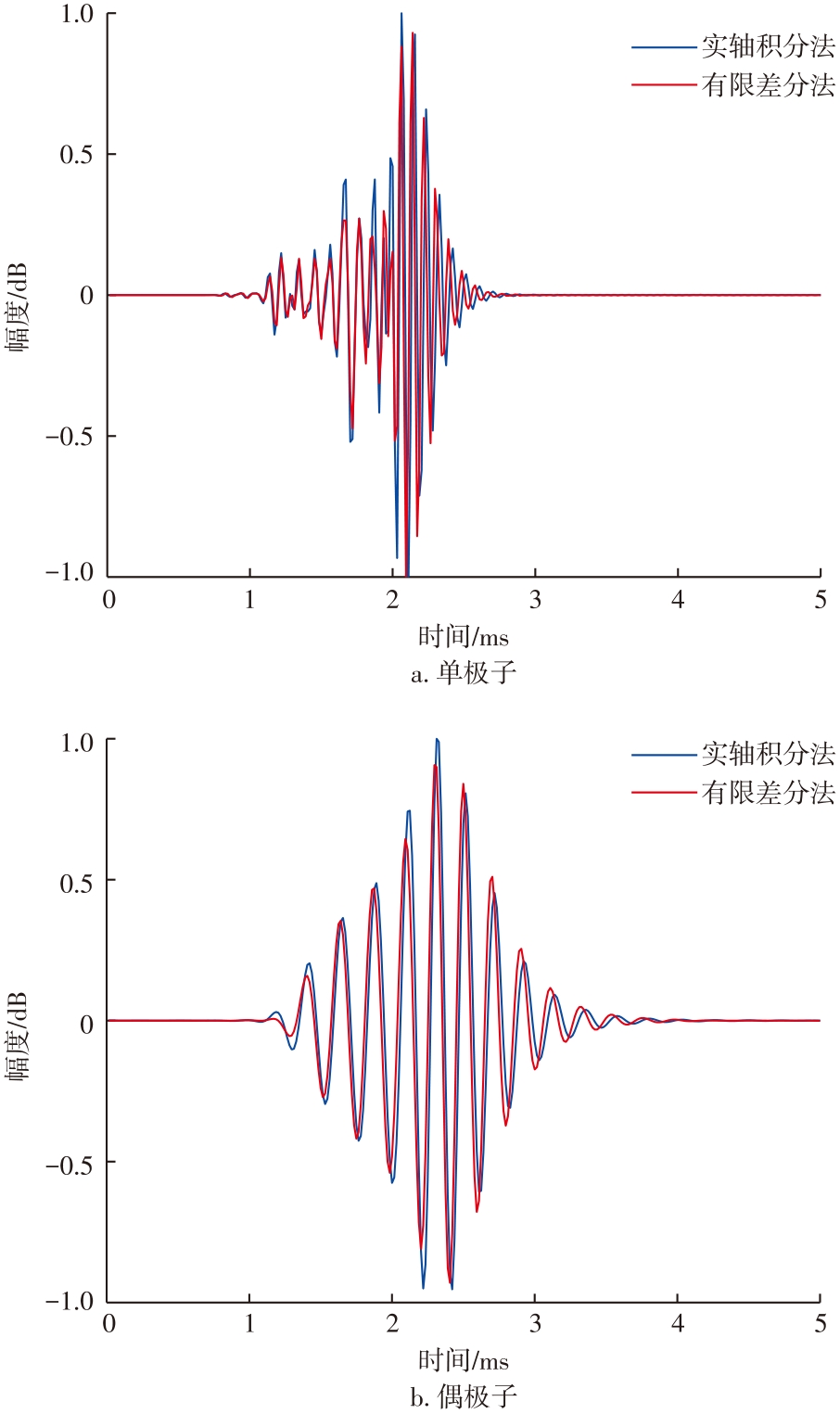

Fig.3

Table 1

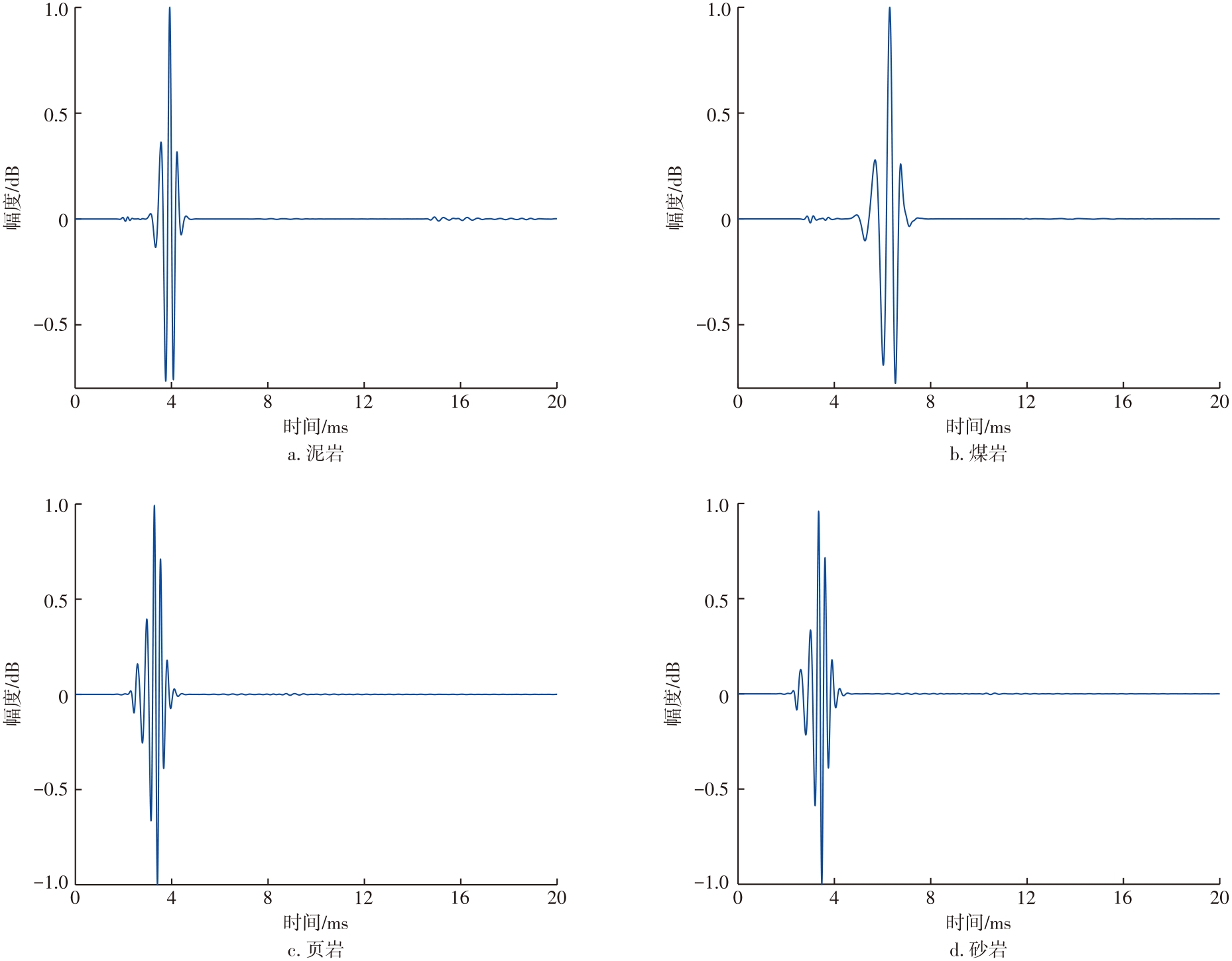

Fig.4

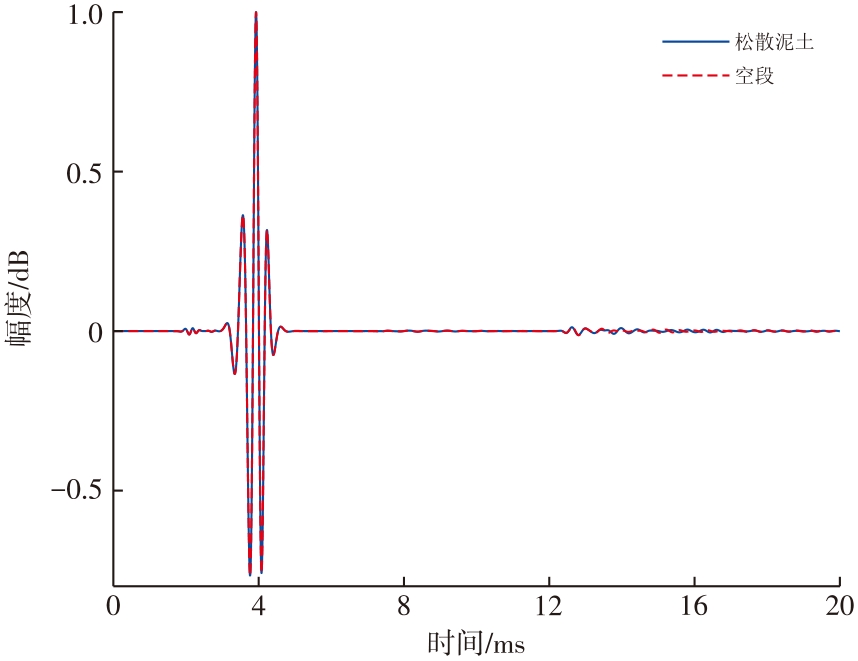

Fig.5

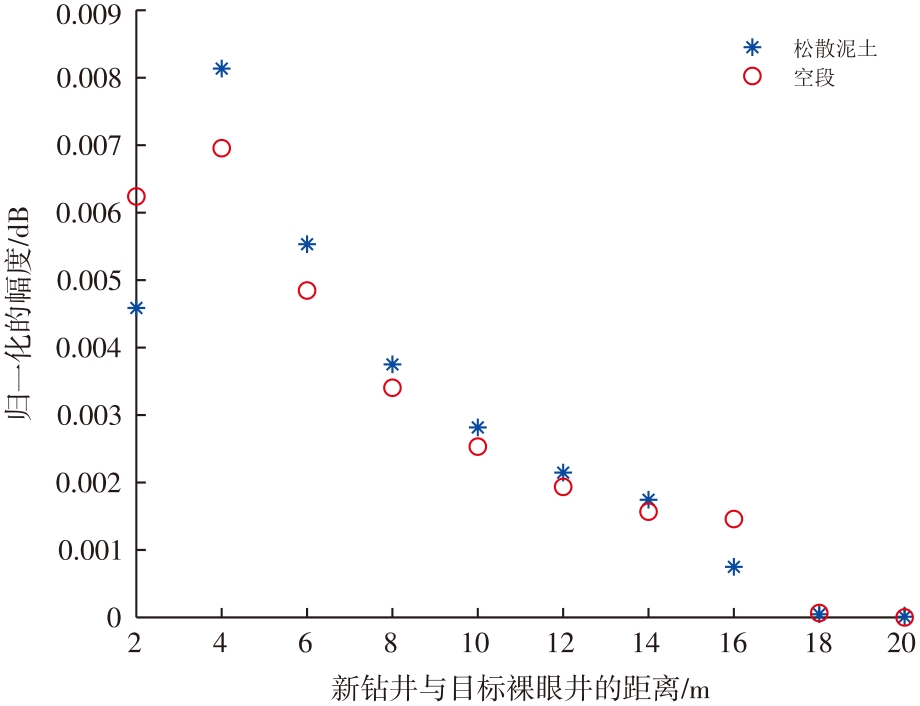

Fig.6

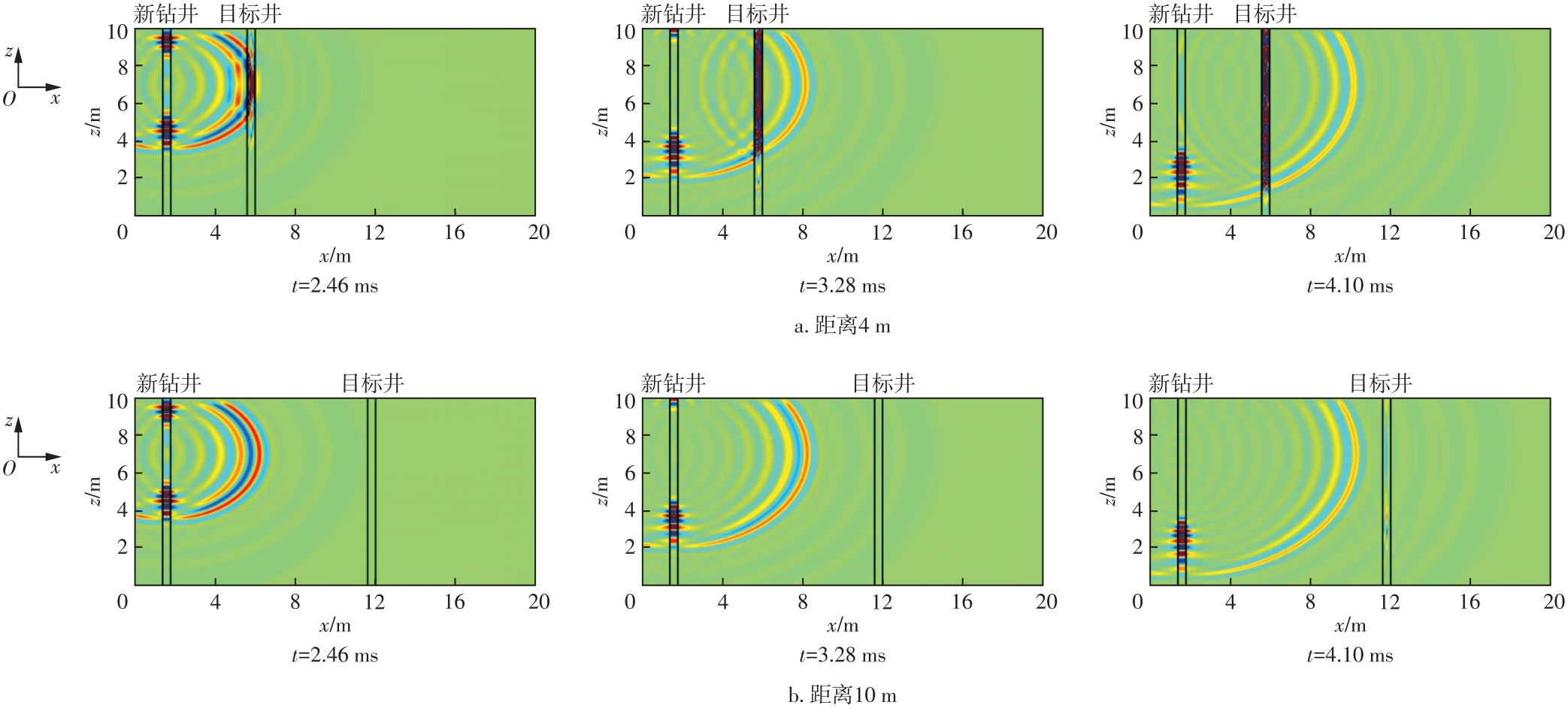

Fig.7

Fig.8

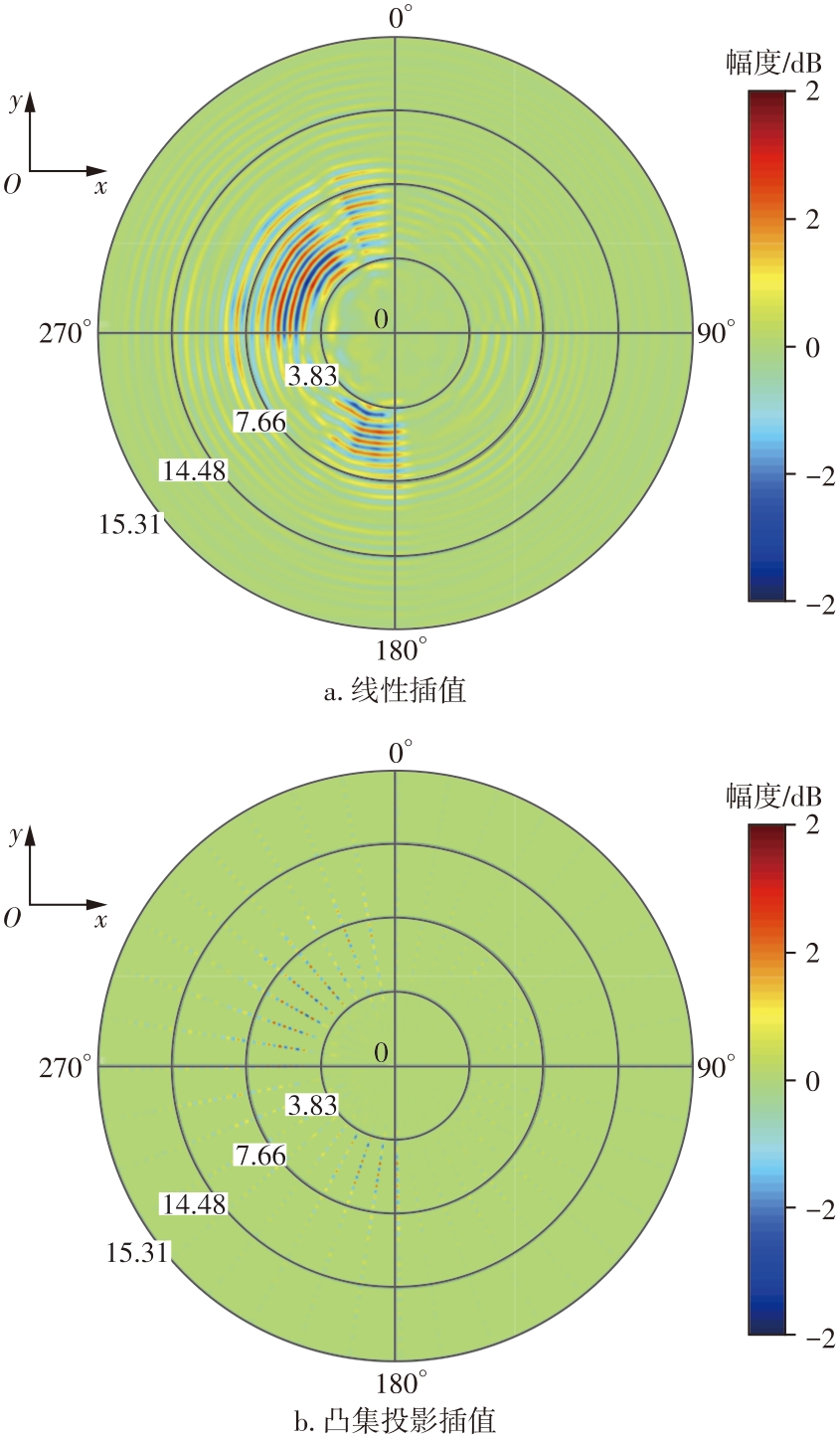

Fig.9

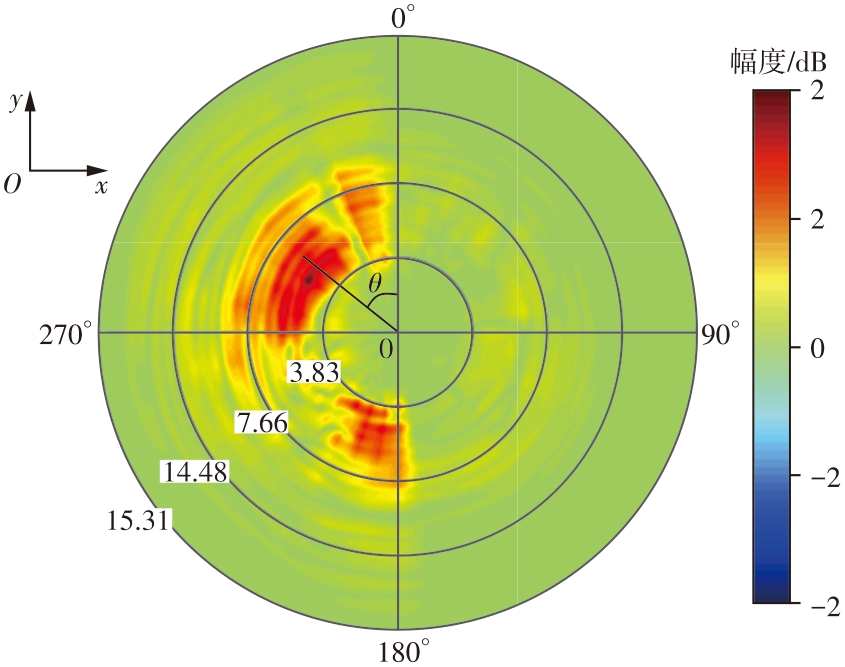

Fig.10

Table 2

Underground positioning results of open-hole wells"

模型a					模型b
预设值		测试值			预设值		测试值
$s$ /m	θ/（°）	$s$ /m	θ₁/（°）	θ₂/（°）	$s$ /m	θ/（°）	$s$ /m	θ₁/（°）	θ₂/（°）
4.000 0	270	4.347 4	90	270	8.000 0	270	8.051 6	90	270

Table 2

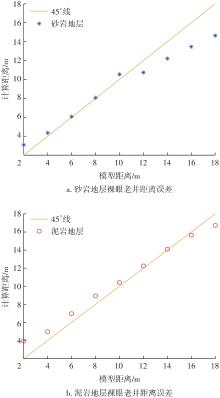

Fig.11

Table 3

References 19

[1]	董经利, 许孝凯, 张晋言, 等. 声波远探测技术概述及发展[J]. 地球物理学展, 2020, 35(2): 566-572.
	DONG Jingli, XU Xiaokai, ZHANG Jinyan, et al. Overview and development of acoustic far detection technology[J]. Progress in Geophysics, 2020, 35(2): 566-572.
[2]	邓军, 王津睿, 任帅京, 等. 声波探测技术在矿井领域中的应用及展望[J]. 煤田地质与勘探, 2023, 51(6): 149-162.
	DENG Jun, WANG Jinrui, REN Shuaijing, et al. Application and prospect of acoustic detection in the mining sector[J]. Coal Geology & Exploration, 2023, 51(6): 149-162.
[3]	NAGANO K, NIITSUMA H, CHUBACHI N. Automatic algorithm for triaxial hodogram source location in downhole acoustic emission measurement[J]. Geophysics, 2012, 54(4): 508-513.
[4]	WEST C L, KUCKES A F, RITCH H J. Successful ELREC logging for casing proximity in an offshore Louisiana blowout[C]// Paper SPE-11996-MS presented at the 58th Annual Technical Conference and Exhibition, San Francisco, CA, October 1983.
[5]	KUCKES A F. Alternating and static magnetic field gradient measurements for distance and direction determination: US5305212[P]. 1994-04-19.
[6]	车阳, 乔磊, 袁光杰, 等. 主动磁测距技术在T1井封井工程的应用[J]. 石油机械, 2022, 50(2): 15-22.
	CHE Yang, QIAO Lei, YUAN Guangjie, et al. Application of active magnetic ranging technology in capping operation of well T1[J]. China Petroleum Machinery, 2022, 50(2): 15-22.
[7]	KUCKES A F, HAY R T, MCMAHON J, et al. New electromagnetic surveying/ranging method for drilling parallel horizontal twin wells[J]. SPE Drilling & Completion, 1996, 11(2): 85-90.
[8]	ELGIZAWY M, FRASER M, LOWDON R, et al. A novel realtime well collision avoidance monitoring by definitive dynamic surveys and passive magnetic ranging[C]// Paper SPE-211791-MS presented for presentation at the ADIPEC held in Abu Dhabi, UAE, 31 October-3 November 2022.
[9]	KABIRZADEH H, RANGELOVA E, LEE G H, et al. Dynamic error analysis of measurement while drilling using variable geomagnetic in-field referencing[J]. SPE Journal, 2018, 23(6): 2327-2338.
[10]	朱祖扬. 随钻单极子声波测井模式优化及远探测[J]. 应用声学, 2022, 41(2): 310-317.
	ZHU Zuyang. The logging mode optimization and remote detection performance of monopole acoustic logging while drilling[J]. Journal of Applied Acoustics, 2022, 41(2): 310-317.
[11]	仵杰, 雪宇超, 路涛, 等. 各向异性地层中的偶极声波测井响应特性及反演[J]. 西安石油大学学报(自然科学版), 2022, 37(4): 76-83.
	WU Jie, XUE Yuchao, LU Tao, et al. Response characteristics and inversion of dipole acoustic logging in anisotropic formation[J]. Journal of Xi’an Shiyou University (Natural Science Edition), 2022, 37(4): 76-83.
[12]	唐晓明, 魏周拓. 利用井中偶极声源远场辐射特性的远探测测井[J]. 地球物理学报, 2012, 55(8): 2798-2807.
	TANG Xiaoming, WEI Zhoutuo. Single-well acoustic reflection imaging using far-field radiation characteristics of a borehole dipole source[J]. Chinese Journal of Geophysics, 2012, 55(8): 2798-2807.
[13]	吴柏志, 许孝凯, 杜群杰. 偶极横波远探测方位区分新方法[J]. 中国石油大学学报(自然科学版), 2023, 47(6): 43-49.
	WU Baizhi, XU Xiaokai, DU Qunjie. Novel method for dipole shear wave remote detection azimuth discrimination[J]. Journal of China University of Petroleum(Edition of Natural Science), 2023, 47(6): 43–49.
[14]	WEI Z T, TANG X M. Numerical simulation of radiation, reflection, and reception of elastic waves from a borehole dipole source[J]. Geophysics, 2012, 77(6): D253-D261.
[15]	XU J Q, HU H S, LIU Q H. Combination of FDTD with analytical methods for simulating elastic scattering of 3-D objects outside a fluid-filled borehole[J]. IEEE Transactions on Geoscience and Remote Sensing, 2021, 59(6): 5325-5334.
[16]	彭更新, 刘威, 郭念民, 等. 基于时空域交错网格有限差分法的应力速度声波方程数值模拟[J]. 石油物探, 2022, 61(1): 156-165.
	PENG Gengxin, LIU Wei, GUO Nianmin, et al. A time-space domain dispersion-relationship-based staggered-grid finite-difference scheme for modeling the stress-velocity acoustic wave equation[J]. Geophysical Prospecting for Petroleum, 2022, 61(1): 156-165.
[17]	BEN-MENAHEM A, KOSTEK S. The equivalent force system of a monopole source in a fluid-filled open borehole[J]. Geophysics, 1991, 56(9): 1477-1481.
[18]	CHEN L, HUANG J, FU L Y, et al. A compact high-order finite-difference method with optimized coefficients for 2D acoustic wave equation[J]. Remote Sensing, 2023, 15(3): 604.
[19]	车小花, 乔文孝, 阎相祯. 反射声波成像测井的有限元模拟[J]. 应用声学, 2004, 23(6): 1-4.
	CHE Xiaohua, QIAO Wenxiao, YAN Xiangzhen. Numerical simulation of borehole acoustic-reflection imaging using the finite element method[J]. Journal of Applied Acoustics, 2004, 23(6): 1-4.

填充物	纵波速度/（m/s）	横波速度/（m/s）	密度/ （kg/m³）
井孔流体	1 450		1 000
砂岩地层	3 500	1 850	2 600
泥岩地层	2 300	1 250	2 200
空段	340		1
松散泥土	1 200		880

深度/m	s/m	θ₁/（°）	θ₂/（°）
3 165	4.96	49	229
	5.94	49	229
	5.28	69	249
3 175	5.13	39	219
	5.13	49	229
	4.86	59	239
	4.87	79	259
	5.30	89	269
